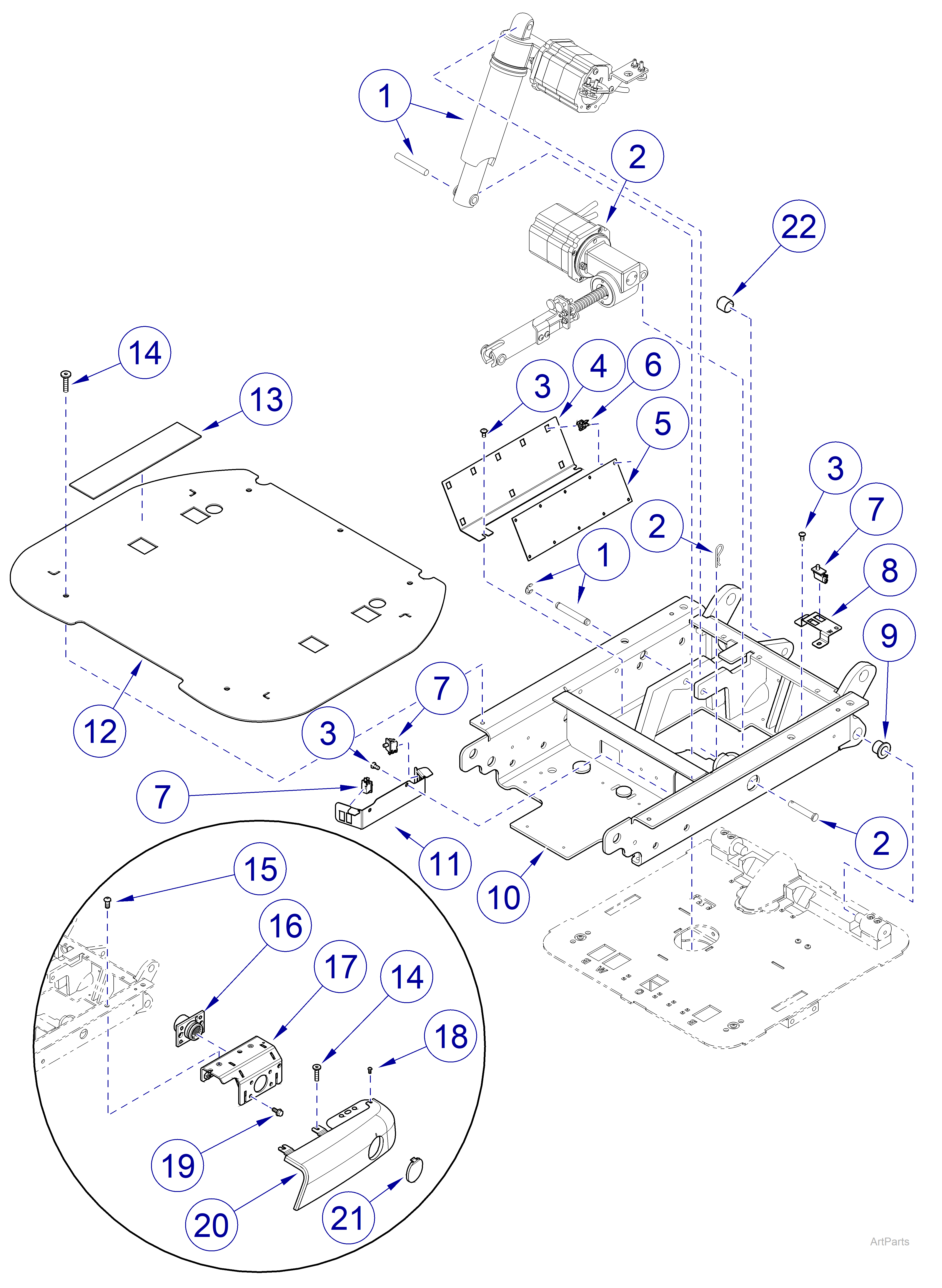

631 Chair Seat Section
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 630 Chair Seat Section | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | - | |
|
2 |
Refer to: | Foot Actuator | - |
|
3 |
040-0010-47 | Screw 10-24 x 3/8 in. | 6 |
|
4 |
050-8805-00-216 | Hub Board Bracket | 1 |
|
5 |
002-1749-00 | Motor Control Hub PC Board Kit - Includes item 6 | 1 |
|
6 |
053-1664-00-000 | PC Board Standoff | 8 |
|
7 |
015-3025-00 | Switch, Normally Closed | 6 |
|
8 |
050-12525-00 | Tilt Limit Switch Housing Bracket | 1 |
|
9 |
016-0131-04 | Flanged Bearing | 2 |
|
10 |
Seat Weldment - Non Serviceable | NSS | |
|
11 |
050-13267-00 | Limit Switch Bracket | 1 |
|
12 |
050-13346-00-815 | Seat Cover Plate | 1 |
|
13 |
053-0131-45 | Hook Tape Fastener | 2 |
|
14 |
Bolt 1/4”-20 x .472 in. | 9 | |
| 15 | 040-0375-43 | Screw 3/8-16 x 7/8 in. | 8 |
| 16 | 030-10542-00 | ADA Spline Weldment | 2 |
| 17 | Spline Bracket Weldment Options | ||
| 030-10544-00-815 | Left Hand - Shown | 1 | |
| 030-10545-00-815 | Right Hand | 1 | |
| 18 | 040-0010-129 | Screw 10-24 x 1/2 in. | 2 |
| 19 | 040-0312-86 | Screw 5/16-18 x 3/4 in. | 8 |
| 20 | Seat Cladding Options | ||
| 053-10761-00-813 | Left Hand - Shown | 1 | |
| 053-10776-00-813 | Right Hand | 1 | |
| 21 | Spline Cap Options | ||
| 053-10773-00-813 | Left Hand - Shown | 1 | |
| 053-10774-00-813 | Right Hand | 1 | |
| 22 | 016-1569-05 | Bushing | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
