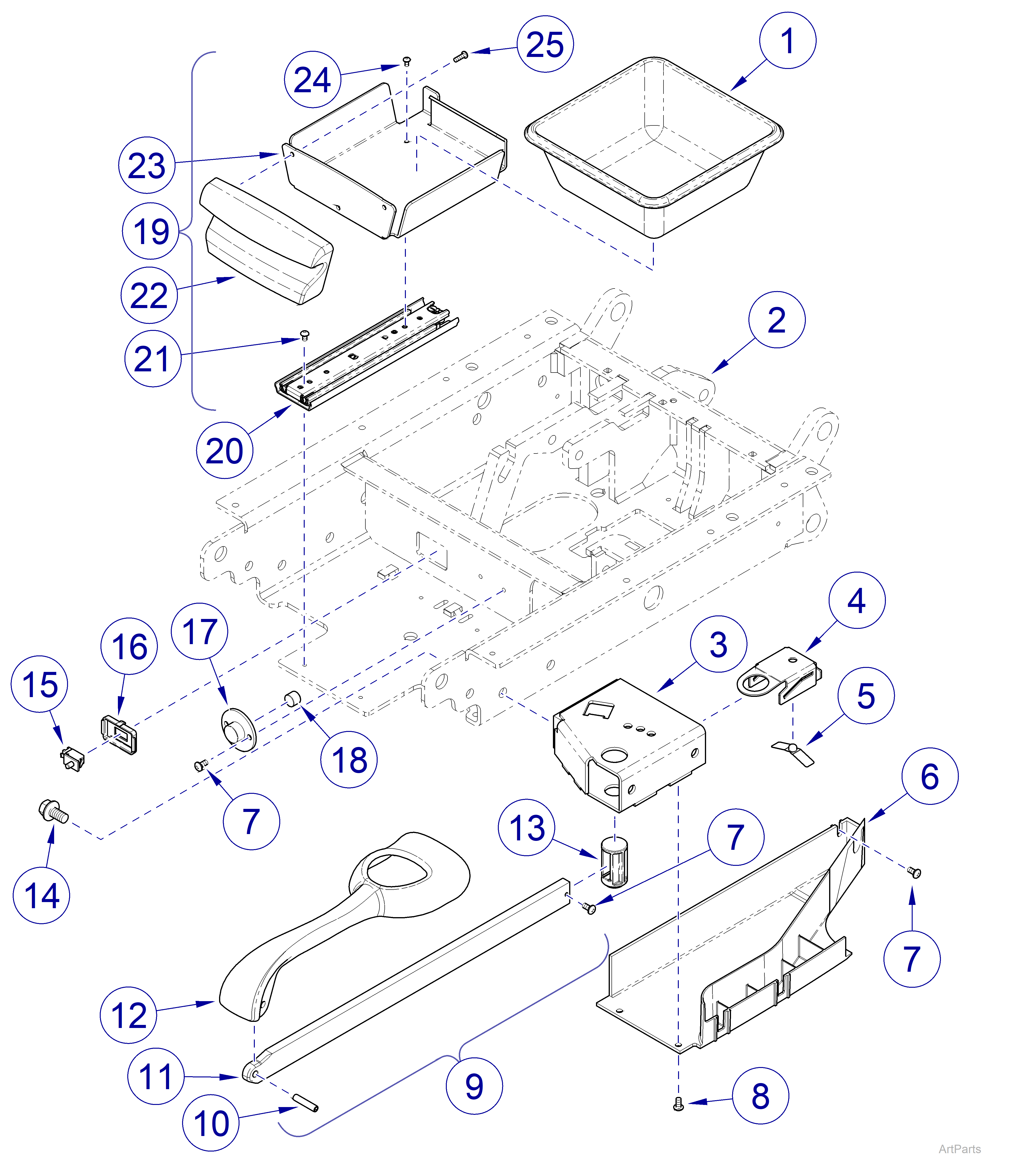

631 Chair Stirrups and Debris Tray
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Stirrups and Pan | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-8816-00 | Debris Tray | 1 |
|
2 |
Refer to: | Seat Section | - |
|
3 |
Stirrup Mount Weldment Options | ||
| 030-0725-00-815 | Right Hand | 1 | |
| 030-0726-00-815 | Left Hand - Shown | 1 | |
|
4 |
050-5027-00 | Stirrup Guide Bracket | 2 |
|
5 |
016-0400-00 | Stirrup Index Spring | 2 |
|
6 |
Stirrup Housing Options | ||
| 053-10777-00-815 | Right Hand | 1 | |
| 053-10762-00-815 | Left Hand - Shown | 1 | |
|
7 |
040-0010-47 | Screw 10-24 x 3/8 in. | 4 |
| 8 | 045-0001-00 | Washer | 2 |
| 9 | 040-0010-123 | Screw 10-24 x 3/8 in. | 4 |
|
10 |
029-2951-00 | Stirrup Assembly - Includes items 11 thru 13 | 2 |
|
11 |
042-0001-39 | Roll Pin | 1 |
|
12 |
051-1003-00 | Stirrup Bar | 1 |
|
13 |
020-0337-00-312 | Stirrup | 1 |
|
14 |
053-0387-00 | Pivot Boss | 2 |
|
15 |
040-0375-00 | Bolt 3/8-16 x 3/4 in. | 4 |
|
16 |
015-3264-00 | Switch - Normally Open | 1 |
|
17 |
053-2361-00-312 | Limit Switch Bracket | 1 |
|
18 |
053-2516-00-312 | Magnet Holder | 1 |
|
19 |
016-0958-01 | Neodymium Plug Magnet | 1 |
| 20 | 002-1760-01 | Tray Holder Kit - Includes items 21 thru 26 | 1 |
|
21 |
016-1568-00 | Debris Tray Slide | 2 |
|
22 |
040-0008-04 | Screw 8-32 x 3/8 in. | 4 |
|
23 |
053-2467-00-815 | Debris Tray Handle | 1 |
|
24 |
050-8596-00-815 | Tray Holder | 1 |
|
25 |
040-0006-116 | Screw 6-32 x 1/4 in. | 4 |
|
26 |
042-0184-01 | Screw M4 x 1.79 x 12M | 3 |
| 27 | 040-0010-129 | Screw 10-24 x 1/2 in. | 2 |
| 28 | Stirrup Cap Options | ||
| 053-10760-00-814 | Left Hand - Shown | 1 | |
| 053-10775-00-814 | Right Hand | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
