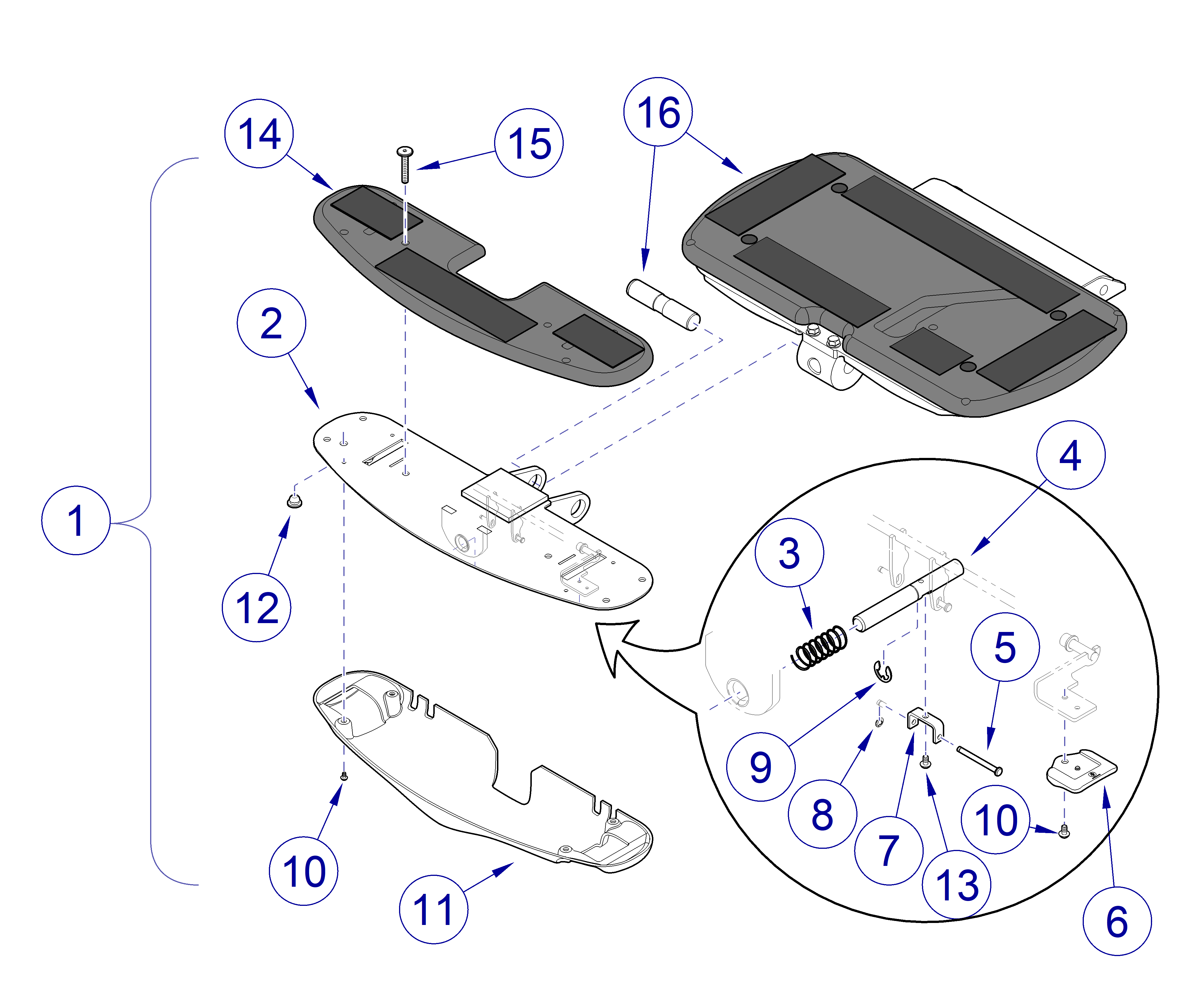

641 Chair Foot Extension
|
Model |
641 |
| Serial Number | All |
| 641 Chair Foot Extension | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-3987-00 |
Foot Extension Assembly - include items 2 thru 13 |
1 |
|
2 |
030-1652-00-312 |
Foot Ext. Weldment |
1 |
|
3 |
025-0042-15 |
Spring |
1 |
|
4 |
057-0937-00 |
Locking Pin |
1 |
|
5 |
042-0606-07 |
Clevis Pin - include item 8 |
1 |
|
6 |
053-1736-00-312 |
Handle |
2 |
|
7 |
050-6953-00 |
Bracket |
1 |
|
8 |
042-0007-11 |
E-ring - small |
1 |
|
9 |
042-0007-06 |
E-ring - large |
1 |
|
10 |
040-0010-47 |
Screw #10-24 x 3/8" |
6 |
|
11 |
053-1695-00-312 |
Bottom Cover |
1 |
|
12 |
053-1439-00 |
Stem Bumper |
2 |
|
13 |
040-0010-75 |
Screw #10-24 x 3/8" |
1 |
|
14 |
029-4025-00 |
Foot Ext. Substrate - include hook and loop fastener |
1 |
|
15 |
042-0059-01 |
Screw |
2 |
|
16 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
