641 Chair Leg Section
|
Model |
641 |
| Serial Number | All |

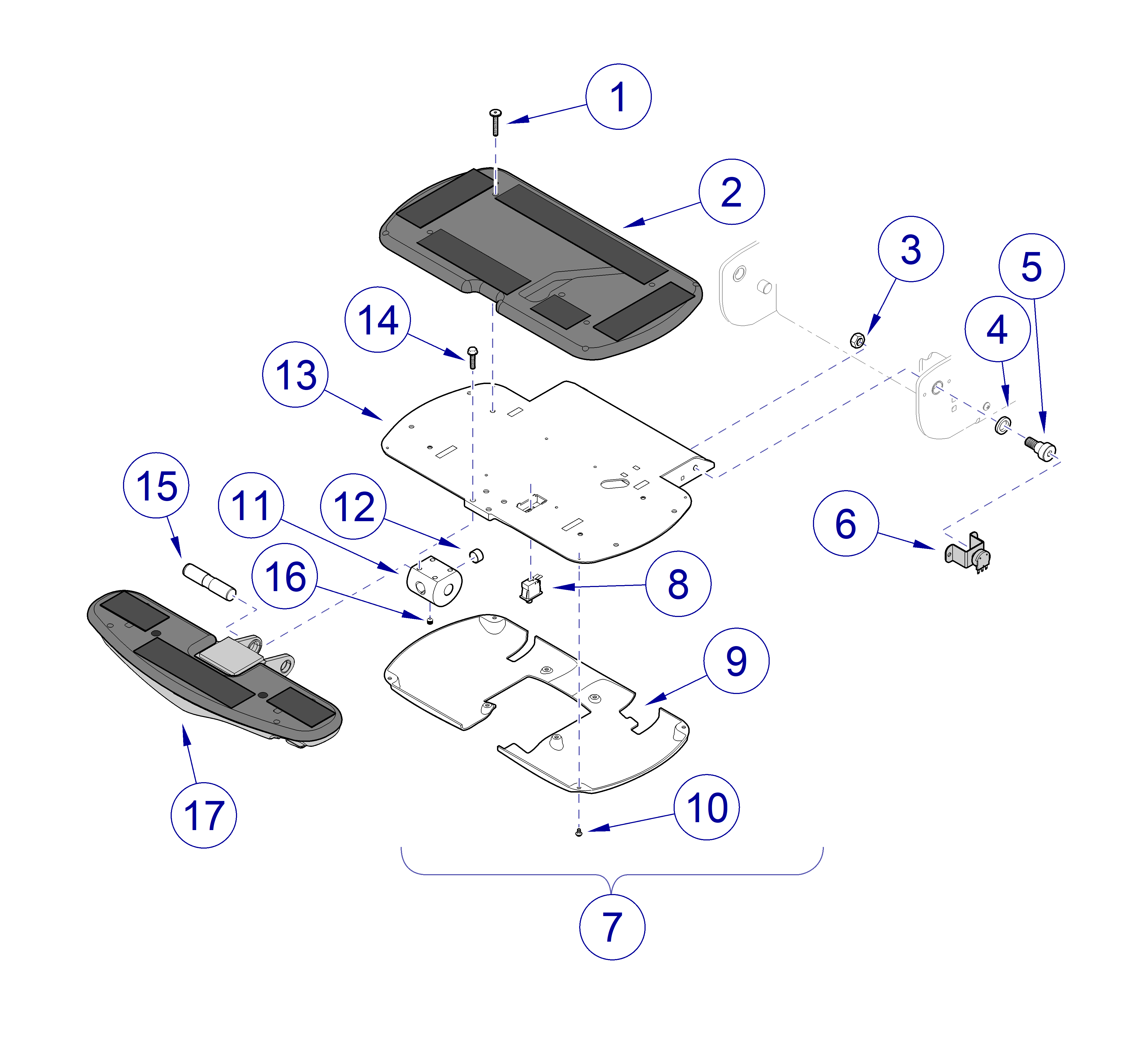

| 641 Chair Leg Section | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
042-0059-01 |
Screw |
4 |
|
2 |
029-4026-00 |
Leg Section Substrate - includes hook and loop fastener |
1 |
|
3 |
041-0375-05 |
Nut - Torque: 20 ft/lbs |
2 |
|
4 |
053-0858-07 |
Thrust Washer |
1 |
|
5 |
042-0014-17 |
Shoulder Screw - Torque: 33 ft/lbs |
2 |
|
6 |
Refer to: |
- |
|
|
7 |
002-1990-00 |
Leg Section Assembly - include items 8 thru 14 |
1 |
|
8 |
015-1055-00 |
Limit Switch |
1 |
|
9 |
053-1697-00-312 |
Bottom Cover |
1 |
|
10 |
040-0010-47 |
Screw #10-24 x 3/8" |
4 |
|
11 |
057-0917-00 |
Receiver Block |
1 |
|
12 |
016-0076-05 |
Bushing |
1 |
|
13 |
030-1653-00-312 |
Leg Section Weldment |
1 |
|
14 |
040-0312-24 |
Hex Screw 5/16"-18 x 1" |
4 |
|
15 |
057-0926-00 |
Pin |
1 |
|
16 |
040-0312-28 |
Set Screw |
1 |
|
17 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
