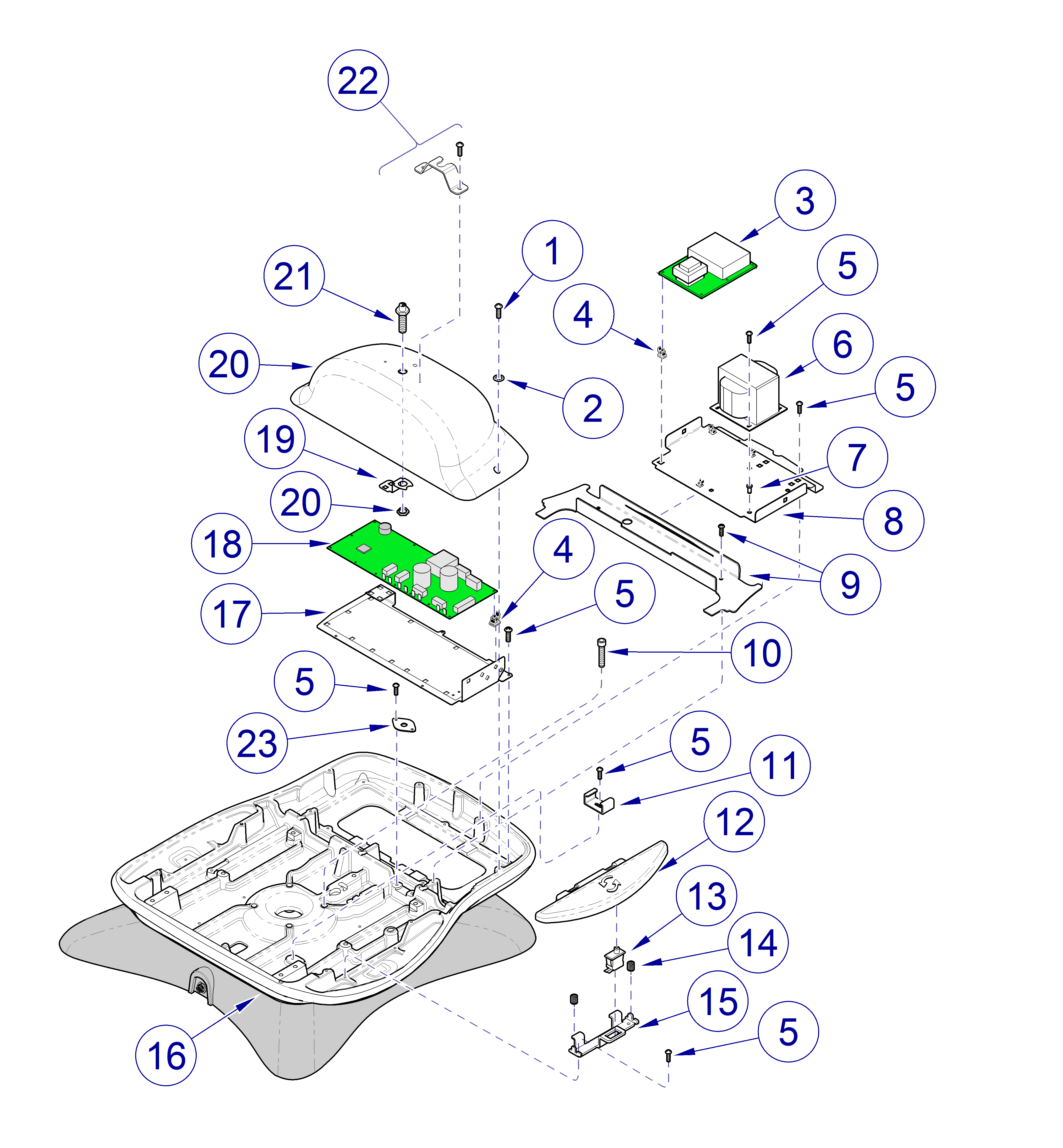

641 Chair Rotational Base Upper Section
|
Model |
641 -002 and -003 |
| Serial Number | All |
| 641 Chair Rotational Base Upper Section | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0010-129 |
Screw 10-24 x .50 tt |
2 |
|
2 |
045-0001-35 |
Lockwasher #10 Int. tooth |
2 |
|
3 |
015-1970-00 |
Rotation Control PC Board Assembly |
1 |
|
4 |
053-1664-00-000 |
PC Board Standoff |
16 |
|
5 |
040-0010-47 |
Screw Pan head phillips 10-24 X 3/8" |
18 |
|
6 |
015-1647-00 |
Main System Transformer Assembly |
1 |
|
7 |
042-0045-01 |
Nutsert 10-24 |
4 |
|
8 |
050-6440-00-000 |
Transformer Bracket |
1 |
|
9 |
Refer to: |
- |
|
|
10 |
040-0375-52 |
Bolt 3/8"-16 x 2" |
4 |
|
11 |
050-5980-00 |
Harness Clip |
1 |
|
12 |
020-0270-00-312 |
Brake Pedal |
2 |
|
13 |
015-1055-00 |
Limit Switch |
2 |
|
14 |
025-0042-13 |
Compression Spring |
4 |
|
15 |
050-6425-00-000 |
Switch Hinge Bracket |
2 |
|
16 |
020-0264-00-312 |
Upper Base Casting |
1 |
|
17 |
050-5951-00 |
PC Board Base Plate |
1 |
|
18 |
Main PC Board Options |
||
| 002-1069-02 |
Non-Programmable |
1 |
|
|
002-1069-02R |
Non-Programmable - Refurbished |
NLA |
|
| 002-1069-03 |
Programmable |
1 |
|
|
002-1069-03R |
Programmable - Refurbished |
NLA |
|
|
19 |
050-6036-00 |
Cable Holder |
1 |
|
20 |
020-0269-00-312 |
PC Board Cover |
1 |
|
21 |
Refer to: |
- |
|
|
22 |
002-0962-00 |
Control Cord Bracket Kit - include bracket and screws |
1 |
|
23 |
050-6006-00 |
Grounding Plate |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
