Biltmore/Knight Chairs Seat Components

Model

 Biltmore/Knight Chairs
Serial Number All

Seat Components

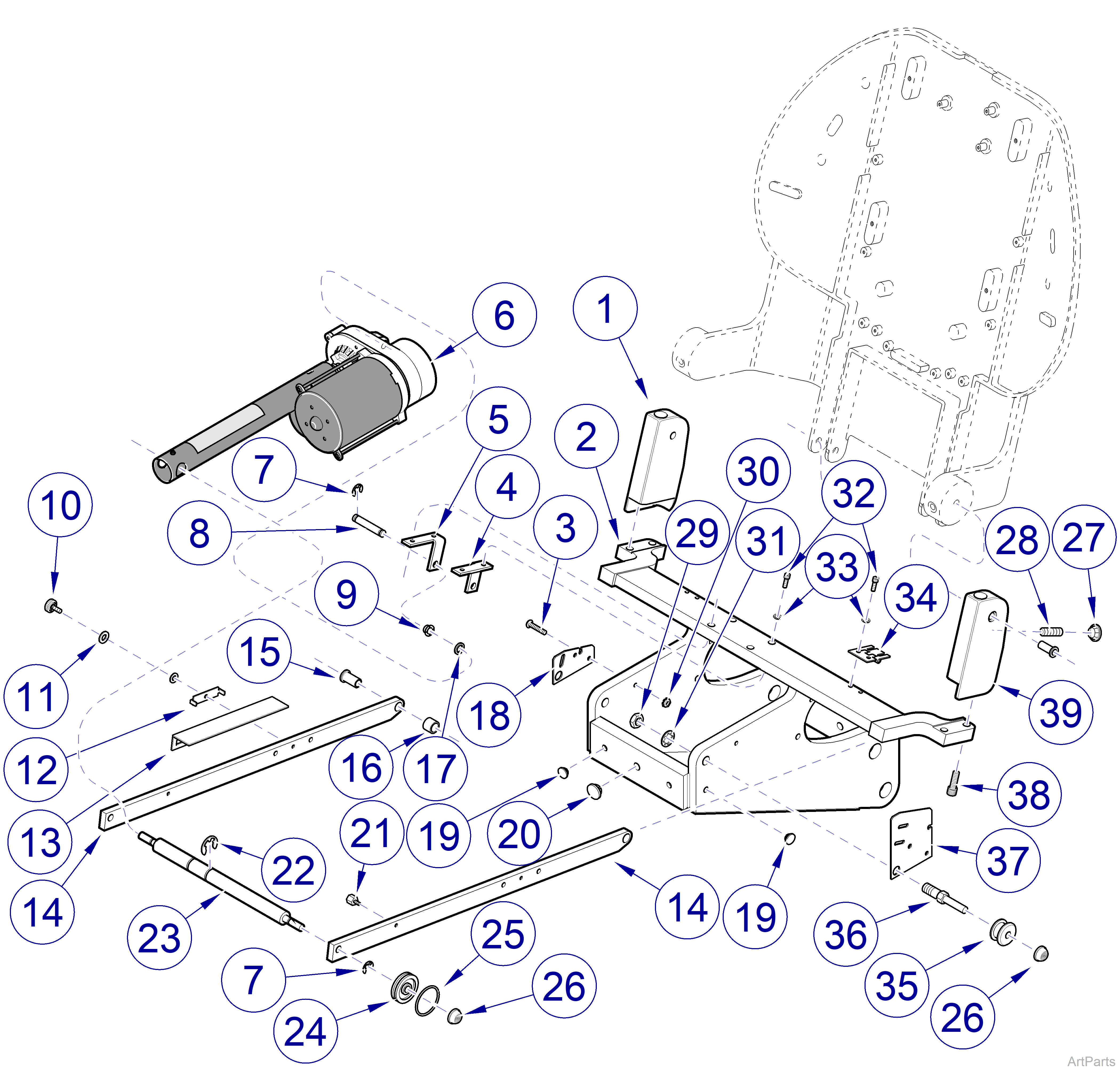

Biltmore/Knight Chairs Seat Components
Item Part Number Description Qty

1

 121951-01 RH Hip Post Assembly - Includes Item 15 1

2

152624-00

 Platform Assembly NLA

3

 102127 Screw 2

4

119737-50

 LH Bracket NLA

5

119738-50

 RH Bracket NLA

6

 Refer to: Top Motor Assembly 1

7

 042-0007-00 Retaining Ring 4

8

 119741-2 Top Motor Pin 1

9

 053-0114-00 Nylon Bushing 2

10

 149730 Thumb Screw 1

11

 P1673 Washer 1

12

121930-50

 Clamping Plate NLA

13

 121931-50 Adjustable Plate 1

14

 Seat Support Assembly Options - Includes Items 15 and 16
  152628-01 RH Seat Support Assembly - Shown Exploded 1
  152629-01 LH Seat Support Assembly 1

15

 121923 Flange Bearing - 1 per Assembly 4

16

 121924-50 Bearing Cover - 1 per Assembly 2

17

 Refer to: Washer in Top Motor Assembly 1

18

 121928-50 Program Switch Plate 1

19

 053-1333-50 Hole Plug 4

20

 120236 Hole Plug 1

21

 119610 Standoff 1

22

 119745 E-Ring 2

23

 121921-2 Tow Bar Shaft 1

24

 112383-6 Legrest Support Roller 2

25

 C6699 O-Ring 2

26

 121967 Push Cap Nut 4

27

 053-1334-50 Hole Plug 2

28

 122816 Set Screw 2

29

 C1079 Nut 2

30

 122357 Lock Nut 2

31

 119537 Lock Washer 2

32

 106657 Screw 8

33

 C2563 Lock Washer 8

34

 118249-2 Leg Rest Hinge 2

35

 121934 Tow Bar Roller 2

36

 121942-2 Tow Bar Roller Shaft 2

37

 121929-50 Limit Switch Plate 1

38

 040-0375-76 Screw 4

39

 121952-01 LH Hip Post Assembly - Includes Item 15 1

40

 045-0001-04 Lockwasher 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
