Biltmore/Knight Chairs Top Electrical Components
|
Model |
Biltmore/Knight Chairs |
| Serial Number | All |

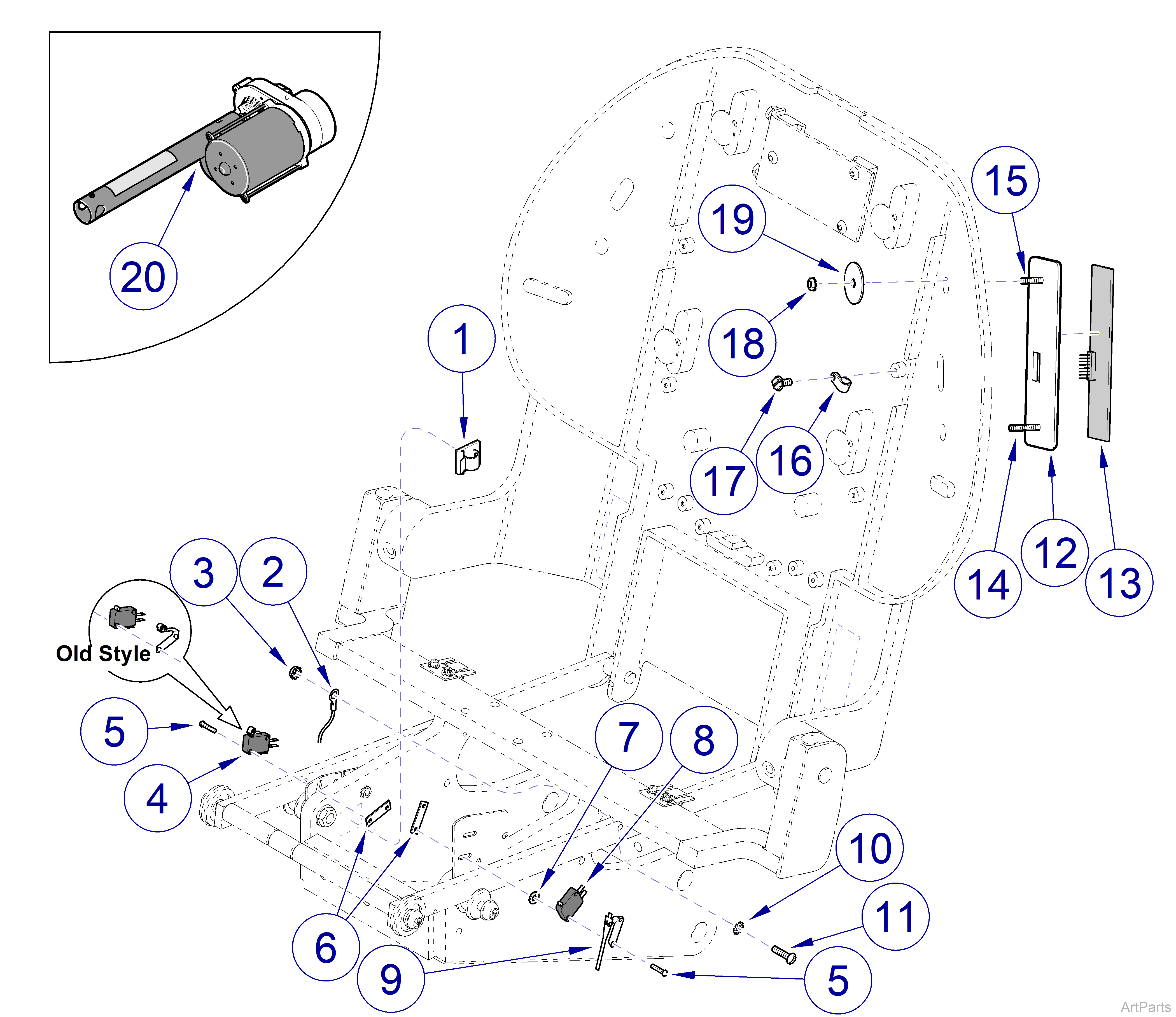

| Biltmore/Knight Chairs Top Electrical Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
109191 | Cord Clip | 6 |
|
2 |
Ground Wire | 1 | |
|
3 |
122357 | Lock Nut | 1 |
|
4 |
122994 | Micro Switch with Roller - Replaces Old Style | 1 |
|
5 |
122806 | Screw | 4 |
|
6 |
4P429 | Nut Bar | 2 |
|
7 |
045-0001-93 | Washer | 2 |
|
8 |
146978 | Micro Switch | 1 |
|
9 |
119633 | Actuator | 1 |
|
10 |
P14718 | Lock Washer | 1 |
|
11 |
102127 | Screw | 1 |
|
12 |
122008-00 | Switch Bezel - Biltmore Classic Only | 2 |
|
13 |
015-1498-00 | Membrane Switch - Biltmore Classic Only | 2 |
|
14 |
121655 | Cable Clamp - Biltmore Classic Only | 7 |
|
15 |
Screw - Biltmore Classic Only | 6 | |
|
16 |
122357 | Lock Nut - Biltmore Classic Only | 4 |
|
17 |
119758 | Washer - Early Biltmore Classic Only | 1 |
|
18 |
Refer to: |
Top Motor Assembly | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
