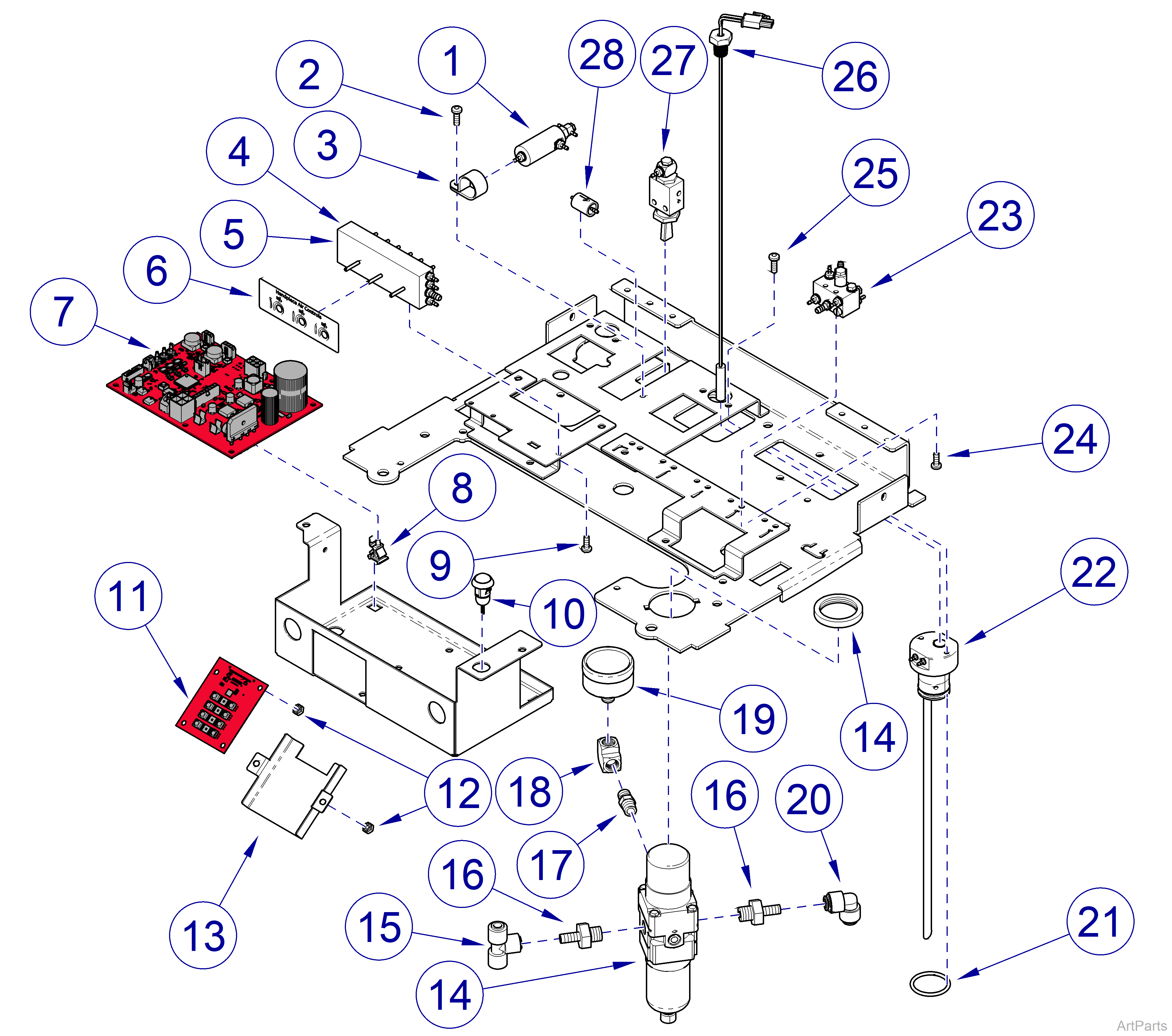

AH9000 Mobile Delivery Unit Delivery System Components
|
Model |
All |
| Serial Number | V2200 thru Present |
| AH9000 Mobile Delivery Unit Delivery System Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Water Drawback Valve Kit - includes items 2 and 3 |
1 | |
|
2 |
040-0008-79 | Screw Mach, Pan Head PHL 8-32 x 1/2 inch | AR |
|
3 |
122582 | Clamp 11/16inch | 1 |
|
4 |
Block Options | ||
|
Tri-Block Kit - Models AH9000-001, AH9000-002, AH9000-004 and AH9000-005 |
1 | ||
|
Quad-Block Kit - Model AH9000-003 |
1 | ||
|
5 |
Membrane Options | ||
| 002-1147-00 | Tri-Block Replacement Membrane Repair Kit - Not Shown | 1 | |
| 002-11080-00 | Quad-Block Replacement Membrane Repair Kit - Not Shown | 1 | |
|
6 |
Block Label Options | ||
| 061-10463-00 | Tri-Block Replacement Label | 1 | |
| 061-10464-00 | Quad-Block Replacement Label - Not Shown | 1 | |
|
7 |
Main PC Board Kit - includes hardware and item 8 | 1 | |
|
8 |
053-1664-00 | PC Board Standoff | 4 |
|
9 |
040-0004-00 | Screw Pan Head 4-40 x 1/4 inch | 2 |
|
10 |
015-11724-00 | Dimmer Switch Push Button | 1 |
|
11 |
002-11076-00 | Water Level LED PC Board - includes item 12 | 1 |
|
12 |
041-0006-02 | Hex Nut with star washer 0.138-32 | 6 |
|
13 |
050-12632-00 | Cover, Water Level PCB | 1 |
|
14 |
Regulator Kit - includes items 15 thru 20 |
1 | |
|
15 |
014-0655-00 | Tee Union | 1 |
|
16 |
014-0656-00 | Adapter Stem 1/8 inch MPT x 1/4 inch | 2 |
|
17 |
014-10066-00 | NPT Pipe Nipple | 1 |
|
18 |
014-10297-00 | 1/8 inch NPT Elbow | 1 |
|
19 |
122841 | Round Pressure Gage | 1 |
|
20 |
014-10189-00 | 90 Degree Push-To-Connect 1/4 inch Tube Elbow | 1 |
|
21 |
014-0176-27 | O-ring | 2 |
|
22 |
029-11214-00 | Water Bottle Manifold Assembly includes item 24 | 2 |
|
23 |
Handpiece Manifold Block Options includes item 24 | ||
| Syringe Manifold Assembly | 1 | ||
| Low Speed Manifold Assembly | 1 | ||
| High Speed Manifold Assembly | 1 | ||
| Scaler Manifold | 1 | ||
|
24 |
040-0006-98 | Screw Pan Head 6-32 X 38 inch | 4 |
|
25 |
040-0008-06 | Screw Mach, Pan Head PHL 8-32 x 1/2 inch |
AR |
|
26 |
002-11019-00 | Water Level Sensor Kit | 2 |
|
27 |
014-0669-00 | Toggle Valve with Relief - Refer Tubing and Fittings item 29 | 1 |
|
28 |
014-0633-00 | 30 PSI In-Line Regulator | 1 |
|
29 |
Refer to: | Tubing and Fittings | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
