Asepsis 21® Delivery and International (Whip) Delivery Typical Kink Valve Assembly Test and Repair

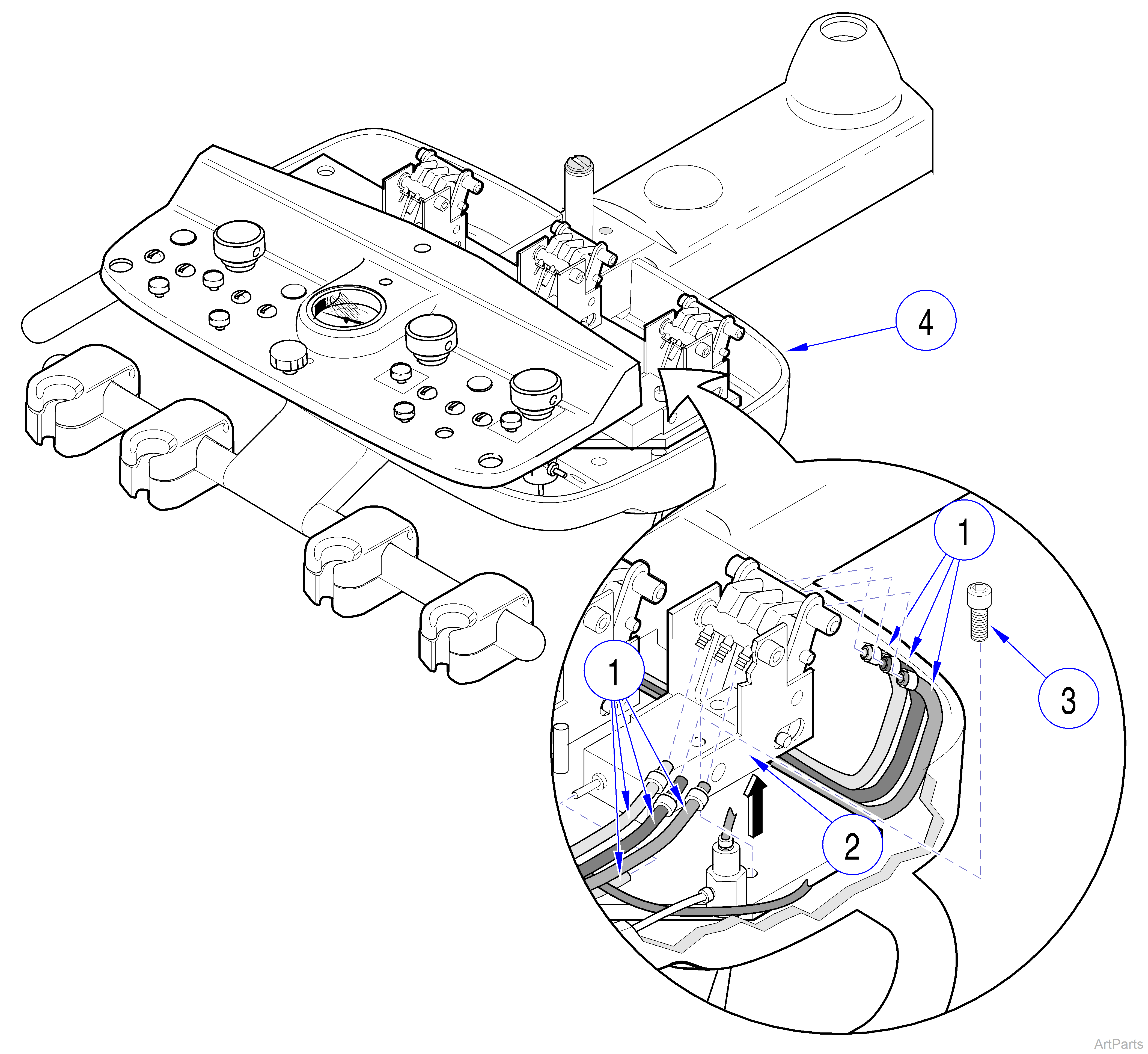

Typical Kink Valve - Asepsis 21® Delivery Unit shown
Removal
1.Remove delivery head cover.
The Asepsis 21® Delivery Unit is shown in the illustration. The kink valve removal / installation procedure for the International (Whip) Delivery Unit is similar .
2.Tag and disconnect all tubing (1) from kink valve assembly (2).
On International (Whip) Delivery Units, the kink valves are mounted to spacer blocks instead of the lower housing. Do not remove the spacer block when replacing the kink valve. Removing the spacer block will release the whip spring.
3.Remove screw (3) and kink valve assembly (2) from lower housing (4).
Installation
1.Install kink valve assembly (2) and secure to lower housing (4) with screw (3).
2.Connect all tubing (1) to kink valve assembly (2).
3.Install delivery head cover.
