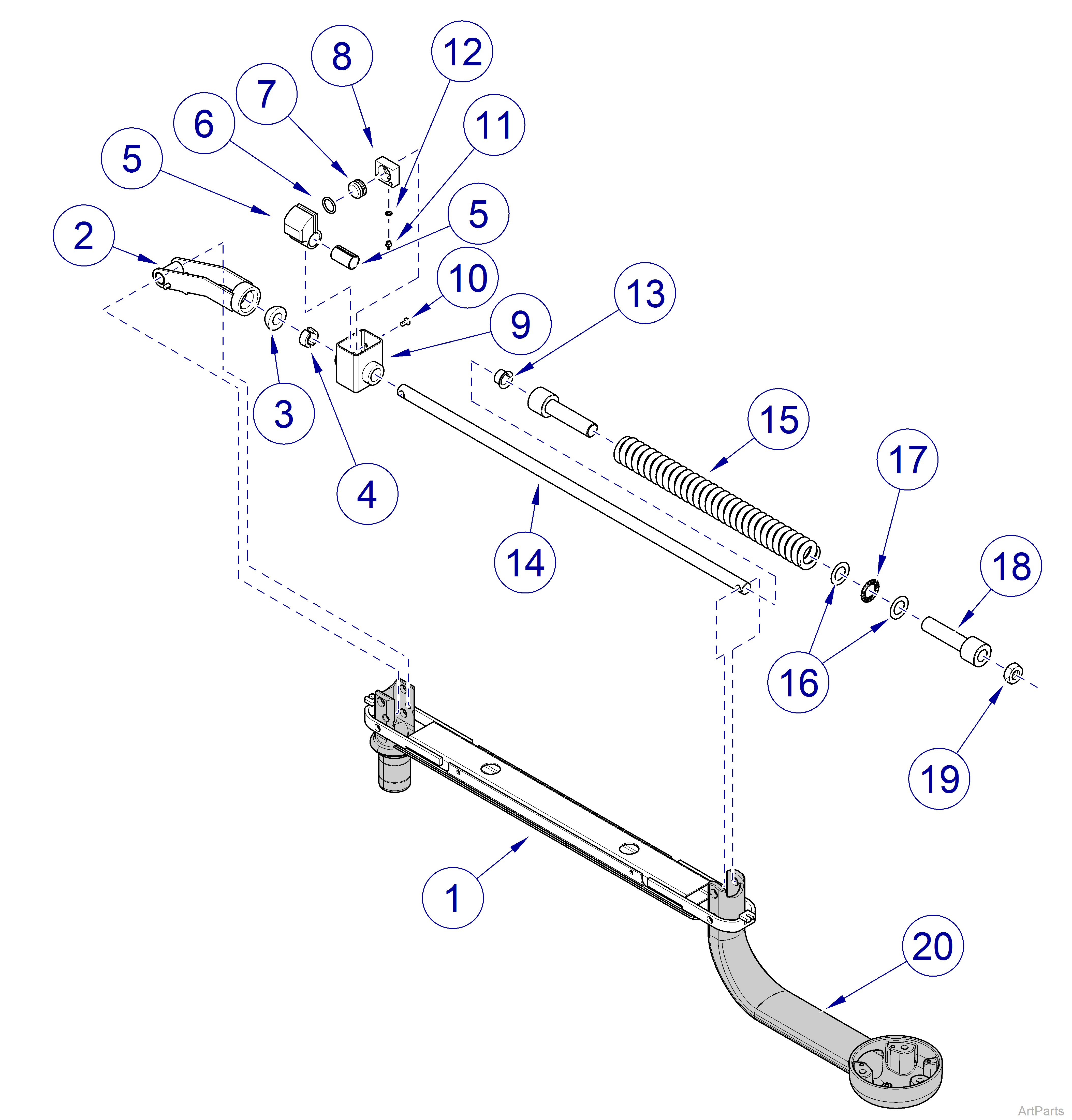

Elevance® Delivery Flex Arm
|
Mounted To |
Console/LR/Rear Mounted on Elevance Dental Chair |
| Serial Number | All |
| Elevance® Delivery Flex Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Tube Assembly |
1 |
|
|
2 |
030-1714-00-216 | Spring Link Assembly | 1 |
|
3 |
057-0991-00 | Aligning Washer | 1 |
|
4 |
057-0993-00 | Friction Pad | 2 |
|
5 |
029-4270-00 | Brake Clamp Assembly | 1 |
|
6 |
014-0176-53 | O-Ring | 1 |
|
7 |
057-0994-00 | Brake Piston | 1 |
|
8 |
051-1176-00 | Piston Housing | 1 |
|
9 |
030-1716-00-216 | Brake Clamp Support | 1 |
|
10 |
040-0010-109 | Screw - Pan Head Phillips | 2 |
|
11 |
109714 | Barb Fitting | 1 |
|
12 |
117660 | Gasket | 1 |
|
13 |
016-1570-08 | Flange Bearing 15/16” Flange Diameter | 1 |
|
14 |
051-1197-00 |
Spring Rod - Apply item 22 before assembling spring | NSS |
|
15 |
025-0088-00-216 | Compression Spring | 1 |
|
16 |
119034 | Thrust Washer | 2 |
|
17 |
119033 | Thrust Bearing | 1 |
|
18 |
057-1036-00 | Spring Spacer | 2 |
|
19 |
041-0625-00 | Jam Nut | 1 |
|
20 |
Refer to: | Delivery Unit Post |
- |
|
21 |
Refer to: | Fixed Arm Post | - |
|
22 |
064-0015-00 |
Synthetic Lubricant - Not Shown | NSS |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
