Elevance® Standard Delivery Unit Control Valves

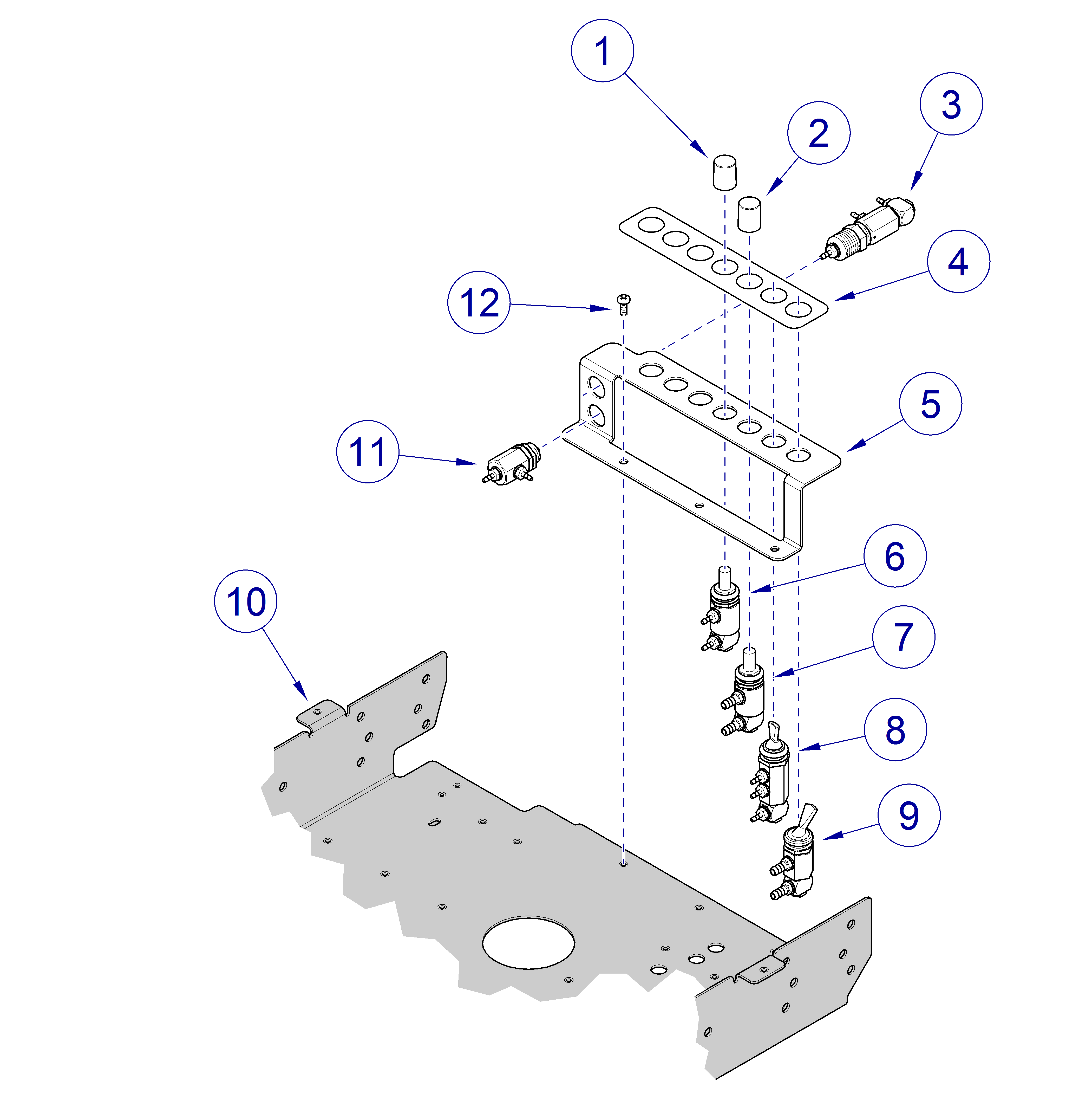

Serial Number Range: V2200 thru V2216571
|
Model |
153800-001 |
| Serial Number | V2200 thru V2216571 |
| Elevance® Standard Delivery Unit Control Valves | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-1165-01 | Blue Fluted Control Knob | 2 |
|
2 |
053-1165-00 | Shadow Grey Fluted Control Knob | 3 |
|
3 |
014-0586-00 | 3-Way Pilot Valve - Normally Open | 1 |
|
4 |
061-0988-00 | Doctor’s Unit Controls Label | 1 |
|
5 |
050-8727-00 | Control Valve Bracket | 1 |
|
6 |
029-2449-01 | Air/Water Control Valve | 4 |
|
7 |
029-2449-00 | Air Control Valve | 1 |
|
8 |
002-1709-00 | Toggle Switch Assembly w/ RH Barb | 1 |
|
9 |
014-0585-00 | 2-Way Toggle Valve | 1 |
|
10 |
Refer to: | Instrument Platform | - |
|
11 |
014-0581-00 | Water Valve Assembly | 1 |
|
12 |
040-0006-97 | Screw 6-32 x 3/8” Pan Head Phillips | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

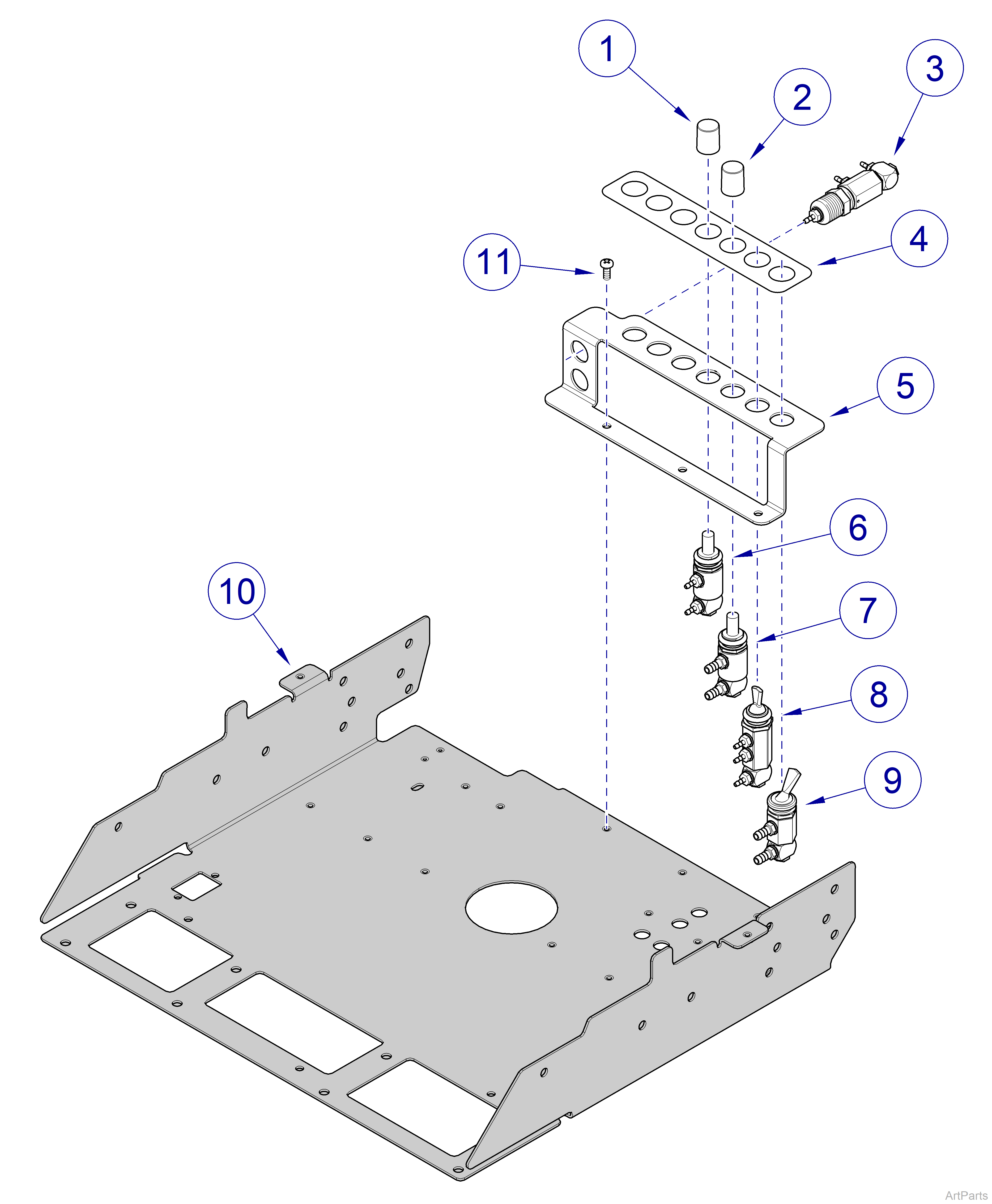

Serial Number Range: V2216572 thru present
|
Model |
153800-001 |
| Serial Number | V2216572 thru present |
| Elevance® Standard Delivery Unit Control Valves | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-1165-01 | Blue Fluted Control Knob | 2 |
|
2 |
053-1165-00 | Shadow Grey Fluted Control Knob | 3 |
|
3 |
014-0586-00 | 3-Way Pilot Valve - Normally Open | 1 |
|
4 |
061-0988-00 | Doctor’s Unit Controls Label | 1 |
|
5 |
050-8727-00 | Control Valve Bracket | 1 |
|
6 |
029-2449-01 | Air/Water Control Valve | 4 |
|
7 |
029-2449-00 | Air Control Valve | 1 |
|
8 |
002-1709-00 | Toggle Switch Assembly w/ RH Barb | 1 |
|
9 |
014-0585-00 | 2-Way Toggle Valve | 1 |
|
10 |
Refer to: | Instrument Platform | - |
|
11 |
040-0006-97 | Screw 6-32 x 3/8” Pan Head Phillips | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
