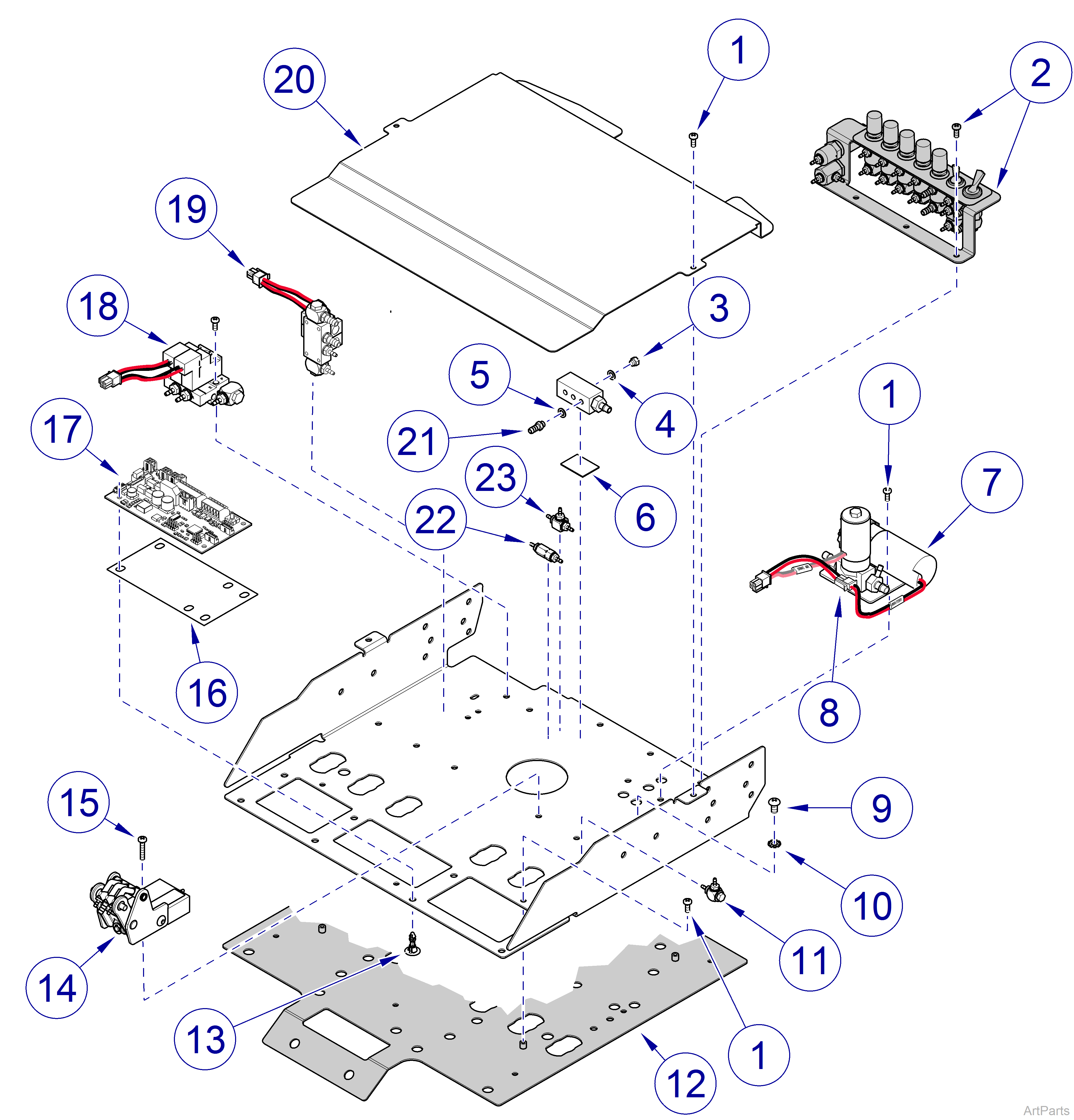

Elevance® Standard Delivery Unit Instrument Platform
Serial Number Range: V2200 thru V1279239
|
Model |
153800-001 |
| Serial Number | V2200 thru V1279239 |
| Elevance® Standard Delivery Unit Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0006-97 | Screw 6-32 x 3/8" Pan Head Phillips | 8 |
|
2 |
Refer to: | Control Valves | - |
|
3 |
117351 | Brass Plug 10-32 | 2 |
|
4 |
117660 | Gasket | 6 |
|
5 |
029-3643-00 | Manifold Assembly w/ Quick Connect | 1 |
|
6 |
275184 | Foam Tape | AR |
|
7 |
002-2029-00 | Proportional Water Valve Replacement Kit | 1 |
|
8 |
029-7021-00 |
Proportional Valve, Air and Water, Assembly Kit - No longer available. Order 002- 10404-00 replacement kit. |
NLA |
|
9 |
040-0010-109 | Screw 10-24 x 3/8" Pan Head Phillips | 1 |
|
10 |
P14718 | Lock Waster #10 | 1 |
|
11 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
12 |
Refer to: | Base Assembly | - |
|
13 |
053-2166-02 | PC Board Standoff | 4 |
|
14 |
002-1941-00 | Kink Valve Kit - Includes item 16 | 3-5 |
|
15 |
040-0006-73 | Screw 6-32 x 3/4" Pan Head Phillips | 5-7 |
|
16 |
053-1920-00 | PC Board Barrier | 1 |
|
17 |
002-1592-00 | PC Board Assembly | 1 |
|
18 |
002-2073-00 | Dual Solenoid Valve Kit | 1 |
|
19 |
002-2067-00 | Endo Valve Kit - Optional | 1 |
|
20 |
050-7336-00-216 | Enclosure Lid | 1 |
|
21 |
117349 | Barb Fitting | 4 |
|
22 |
117698 | Check Valve | 1 |
|
23 |
029-2544-00 | Shuttle Valve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

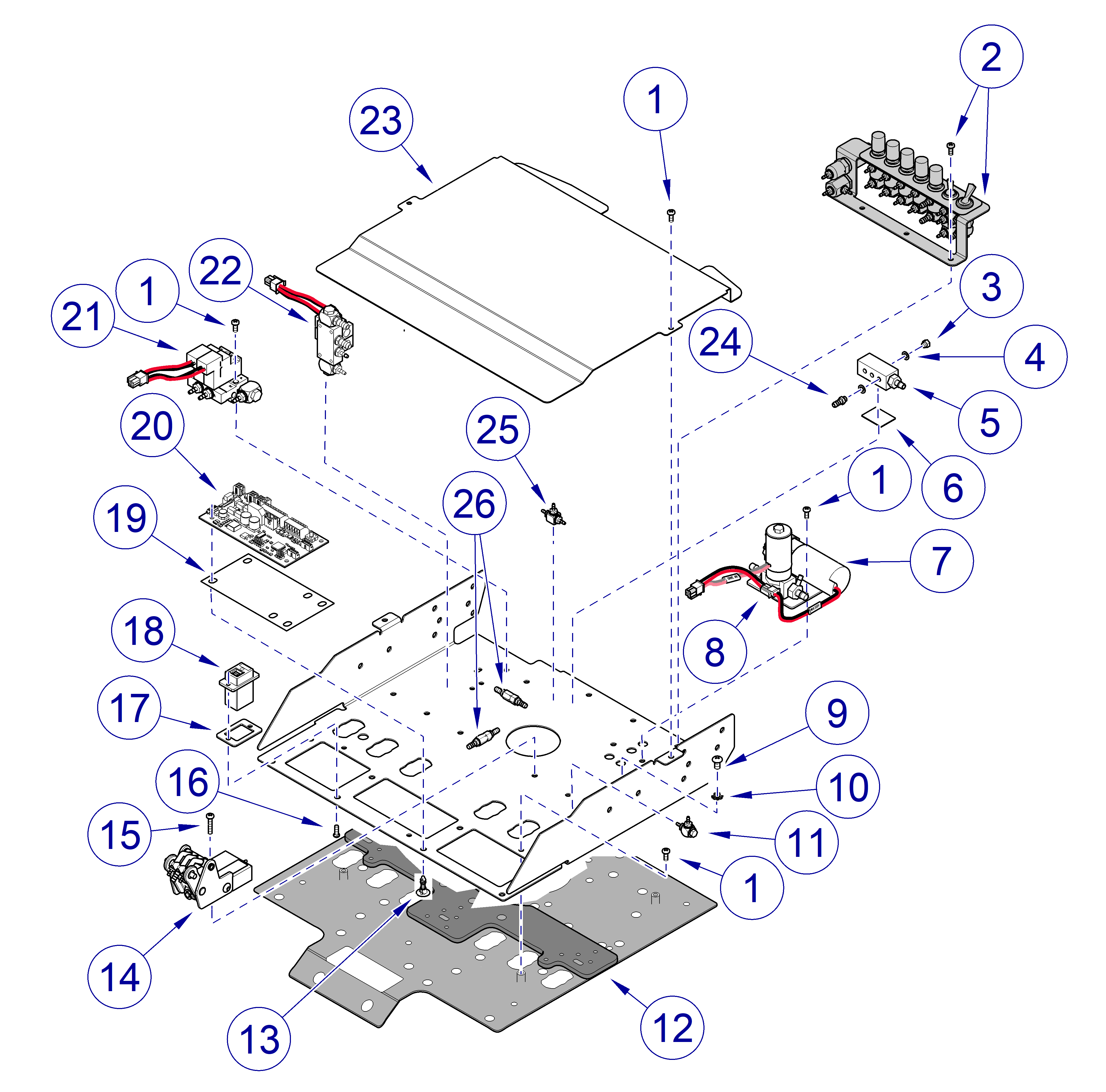

Serial Number Range: V1279240 thru V1621353
|
Model |
153800-001 |
| Serial Number | V1279240 thru V1621353 |
| Elevance® Standard Delivery Unit Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0006-97 | Screw 6-32 x 3/8" Pan Head Phillips | 8 |
|
2 |
Refer to: | Control Valves | - |
|
3 |
117351 | Brass Plug 10-32 | 2 |
|
4 |
117660 | Gasket | 6 |
|
5 |
029-3643-00 | Manifold Assembly w/ Quick Connect | 1 |
|
6 |
275184 | Foam Tape | AR |
|
7 |
002-2029-00 | Proportional Water Valve Replacement Kit | 1 |
|
8 |
029-7021-00 |
Proportional Valve, Air and Water, Assembly Kit - No longer available. Order 002- 10404-00 replacement kit. |
NLA |
|
9 |
040-0010-109 | Screw 10-24 x 3/8" Pan Head Phillips | 1 |
|
10 |
P14718 | Lock Waster #10 | 1 |
|
11 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
12 |
Refer to: | Base Assembly | - |
|
13 |
053-2166-02 | PC Board Standoff | 4 |
|
14 |
002-1941-00 | Kink Valve Kit - Includes item 16 | 3-5 |
|
15 |
040-0006-73 | Screw 6-32 x 3/4" Pan Head Phillips | 5-7 |
|
16 |
042-0168-00 | Screw M3.5 x 1.57 Pan Head Phillips | 2 |
|
17 |
050-7181-00 | USB Mount Bracket | 1 |
|
18 |
015-3083-00 | B-A USB Adapter | 1 |
|
19 |
053-1920-00 | PC Board Barrier | 1 |
|
20 |
002-1592-00 | PC Board Assembly | 1 |
|
21 |
002-2073-00 | Dual Solenoid Valve Kit | 1 |
|
22 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
23 |
050-7336-00-216 | Enclosure Lid | 1 |
|
24 |
117349 | Barb Fitting | 4 |
|
25 |
029-2544-00 | Shuttle Valve | 1 |
|
26 |
117698 | Check Valve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

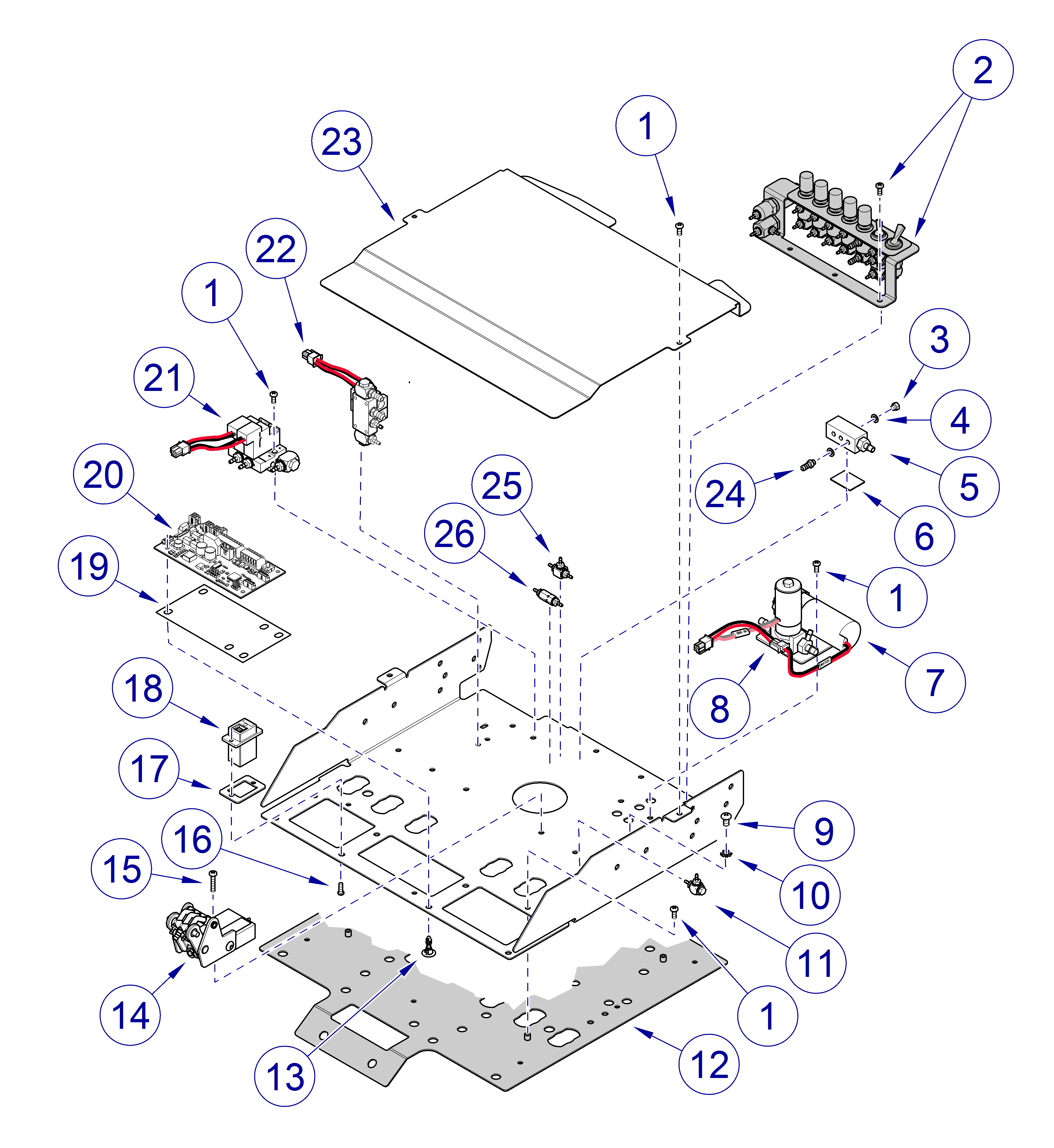

Serial Number Range: V1621354 thru V2118037
|
Model |
153800-001 |
| Serial Number | V1621354 thru V2118037 |
| Elevance® Standard Delivery Unit Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0006-97 | Screw 6-32 x 3/8" Pan Head Phillips | 8 |
|
2 |
Refer to: | Control Valves | - |
|
3 |
117351 | Brass Plug 10-32 | 2 |
|
4 |
117660 | Gasket | 6 |
|
5 |
029-3643-00 | Manifold Assembly w/ Quick Connect | 1 |
|
6 |
275184 | Foam Tape | AR |
|
7 |
002-2029-00 | Proportional Water Valve Replacement Kit | 1 |
|
8 |
029-7021-00 |
Proportional Valve, Air and Water, Assembly Kit - No longer available. Order 002- 10404-00 replacement kit. |
NLA |
|
9 |
040-0010-109 | Screw 10-24 x 3/8" Pan Head Phillips | 1 |
|
10 |
P14718 | Lock Waster #10 | 1 |
|
11 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
12 |
Refer to: | Base Assembly | - |
|
13 |
053-2166-02 | PC Board Standoff | 4 |
|
14 |
002-1941-00 | Kink Valve Kit - Includes Item 15 | 3-5 |
|
15 |
040-0006-73 | Screw 6-32 x 3/4" Pan Head Phillips | 5-7 |
|
16 |
042-0168-00 | Screw M3.5 x 1.57 Pan Head Phillips | 2 |
|
17 |
050-7181-00 | USB Mount Bracket | 1 |
|
18 |
015-3083-00 | B-A USB Adapter | 1 |
|
19 |
053-1920-00 | PC Board Barrier | 1 |
|
20 |
002-1592-00 | PC Board Assembly | 1 |
|
21 |
002-2073-00 | Dual Solenoid Valve Kit | 1 |
|
22 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
23 |
050-7336-00-216 | Enclosure Lid | 1 |
| 24 | 117349 | Barb Fitting | 4 |
| 25 | 029-2544-00 | Shuttle Valve | 1 |
| 26 | 117698 | Check Valve | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

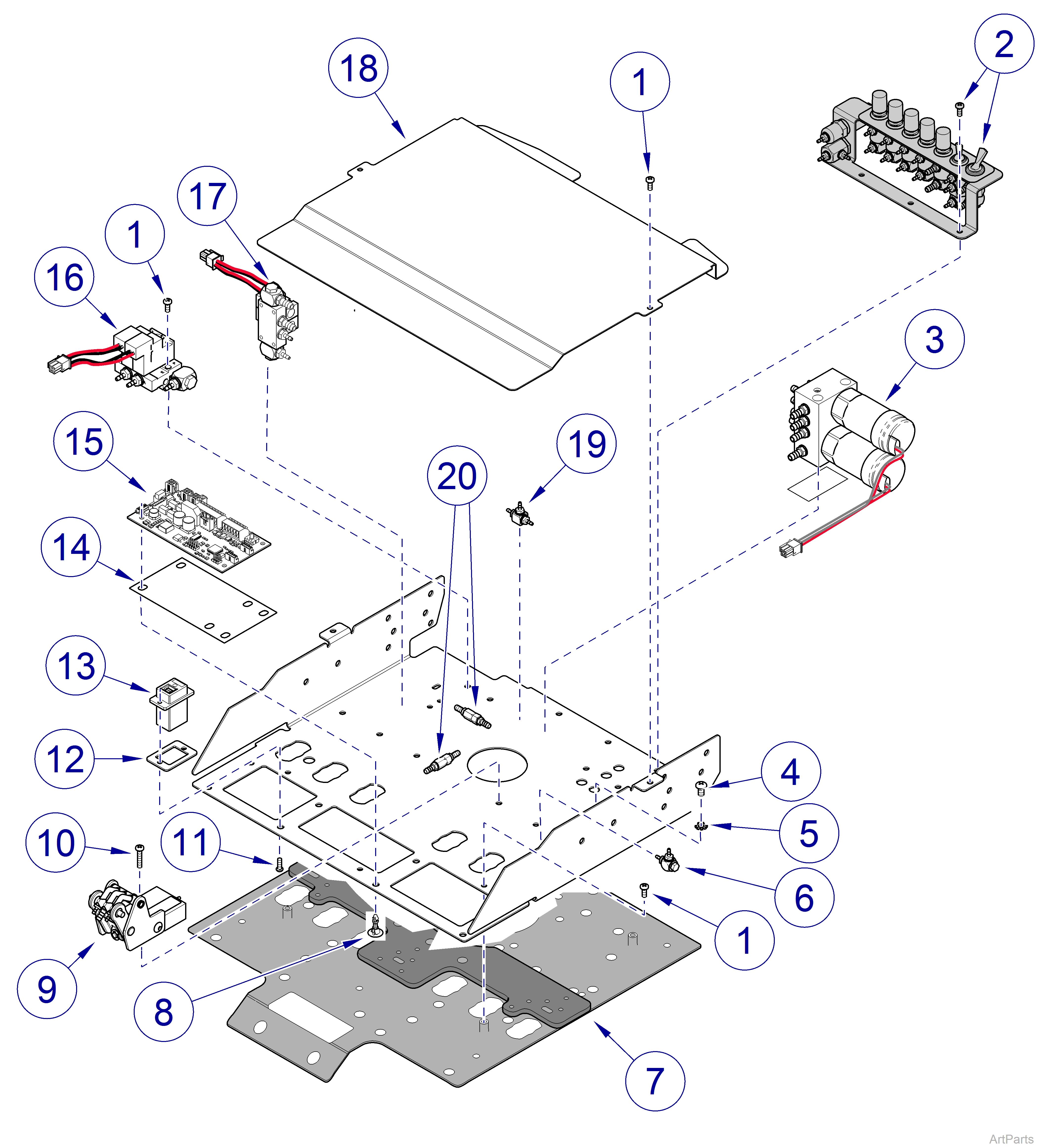

Serial Number Range: V2118037 thru V2216571
|
Model |
153800-001 |
| Serial Number | V2118037 through V2216571 |
For water valve replacement only, order 002-2029-00 replacement kit.
| Elevance® Standard Delivery Unit Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0006-97 | Screw 6-32 x 3/8" Pan Head Phillips | 8 |
|
2 |
Refer to: | Control Valves | - |
|
3 |
002-10404-00 | Proportional Valve, Air and Water, Assembly Kit - Includes Manifold Assembly and Hook and Loop Fastener Mounting Tabs | 1 |
|
4 |
040-0010-109 | Screw 10-24 x 3/8” Pan Head Phillips | 1 |
|
5 |
P14718 | Lock Waster #10 | 1 |
|
6 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
7 |
Refer to: | Base Sub-Assembly | - |
|
8 |
053-2166-02 | PC Board Standoff | 4 |
|
9 |
002-1941-00 | Kink Valve Kit - Includes Item 15 | 3-5 |
|
10 |
040-0006-73 | Screw 6-32 x 3/4” Pan Head Phillips | 5-7 |
|
11 |
042-0168-00 | Screw M3.5 x 1.57 Pan Head Phillips | 2 |
|
12 |
050-7181-00 | USB Mount Bracket | 1 |
|
13 |
015-3083-00 | B-A USB Adapter | 1 |
|
14 |
053-1920-00 | PC Board Barrier | 1 |
|
15 |
002-1592-00 | PC Board Assembly | 1 |
|
16 |
002-2073-00 | Dual Solenoid Valve Kit | 1 |
|
17 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
18 |
050-7336-00-216 | Enclosure Lid | 1 |
|
19 |
029-2544-00 | Shuttle Valve | 1 |
|
20 |
117698 | Check Valves | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

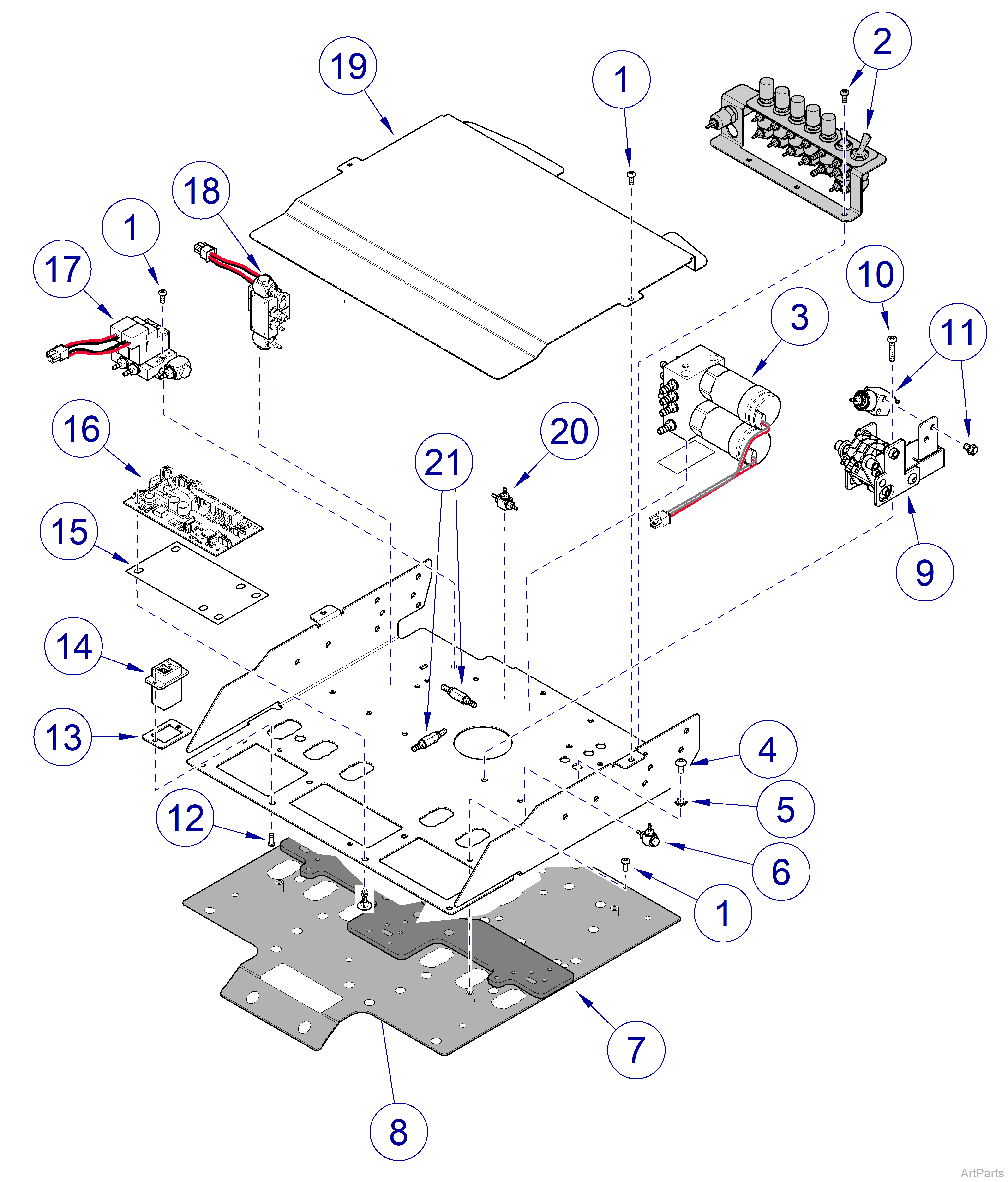

Serial Number Range: V2216572 thru present
|
Model |
153800-001 |
| Serial Number | V2216572 through present |
For water valve replacement only, order 002-2029-00 replacement kit.
| Elevance® Standard Delivery Unit Instrument Platform | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0006-97 | Screw 6-32 x 3/8" Pan Head Phillips | 8 |
|
2 |
Refer to: | Control Valves | - |
|
3 |
002-10404-00 | Proportional Valve, Air and Water, Assembly Kit - Includes Manifold Assembly and Hook and Loop Fastener Mounting Tabs | 1 |
|
4 |
040-0010-109 | Screw 10-24 x 3/8” Pan Head Phillips | 1 |
|
5 |
P14718 | Lock Waster #10 | 1 |
|
6 |
029-5216-00 | Drive Air Bleed-off Tee Assembly | 1 |
|
7 |
Refer to: | Base Sub-Assembly | - |
|
8 |
053-2166-02 | PC Board Standoff | 4 |
|
9 |
002-10492-00 | Kink Valve Kit | 3-5 |
|
10 |
040-0006-125 |
Screw 6-32 x 3/4” Pan Head Phillips | NSS |
|
11 |
2-Way Pilot Valve Kit | 1 | |
|
12 |
042-0168-00 | Screw M3.5 x 1.57 Pan Head Phillips | 2 |
|
13 |
050-7181-00 | USB Mount Bracket | 1 |
|
14 |
015-3083-00 | B-A USB Adapter | 1 |
|
15 |
053-1920-00 | PC Board Barrier | 1 |
|
16 |
002-1592-00 | PC Board Assembly | 1 |
|
17 |
002-2073-00 | Dual Solenoid Valve Kit | 1 |
|
18 |
002-2067-00 | Endo Valve Kit, Optional | 1 |
|
19 |
050-7336-00-216 | Enclosure Lid | 1 |
|
20 |
029-2544-00 | Shuttle Valve | 1 |
|
21 |
117698 | Check Valves | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
