Model

153800-001
Serial Number All

Bottom Assembly

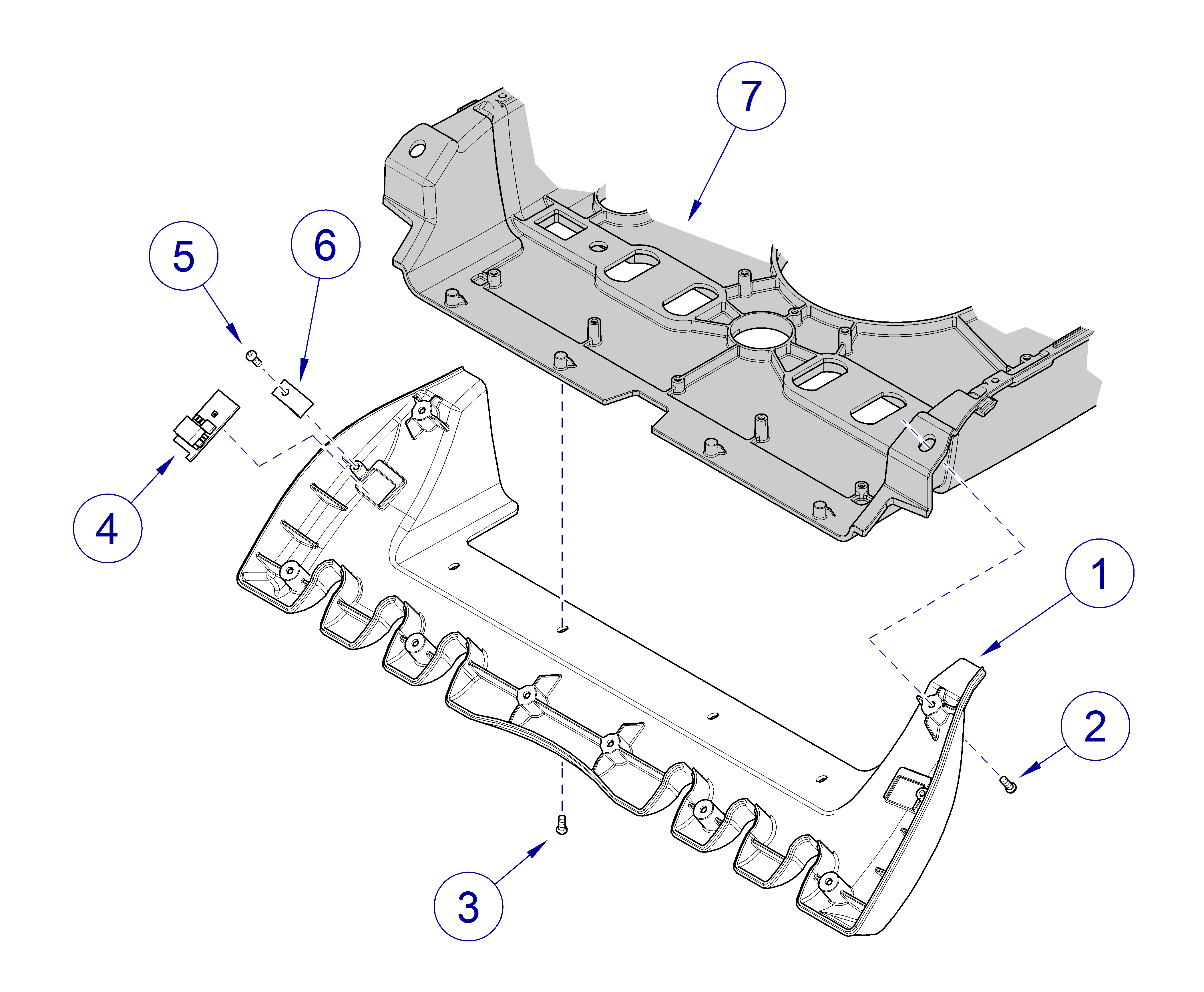

Elevance® Standard Delivery Unit Bottom Assembly
Item Part Number Description Qty

1

Bottom Cover Options



053-1785-00-216

Bottom Cover: 6 Position Holder

1
  053-1791-00-216 Bottom Cover: 4 Position Holder 1

2

121698-5 Screw 6-32 x 3/8” 8

3

042-0168-00 Screw M3.5 x 1.57 x 10M, Pan Head 4

4

015-2115-00 E-Field Sensor PCB 2

5

042-0168-04 Screw M3.5 x 1.57 x 10M, Torx Head 2

6

053-1893-00 E-Field Sensor Retainer Clip 2

7

Refer to: Base Sub-Assembly -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
