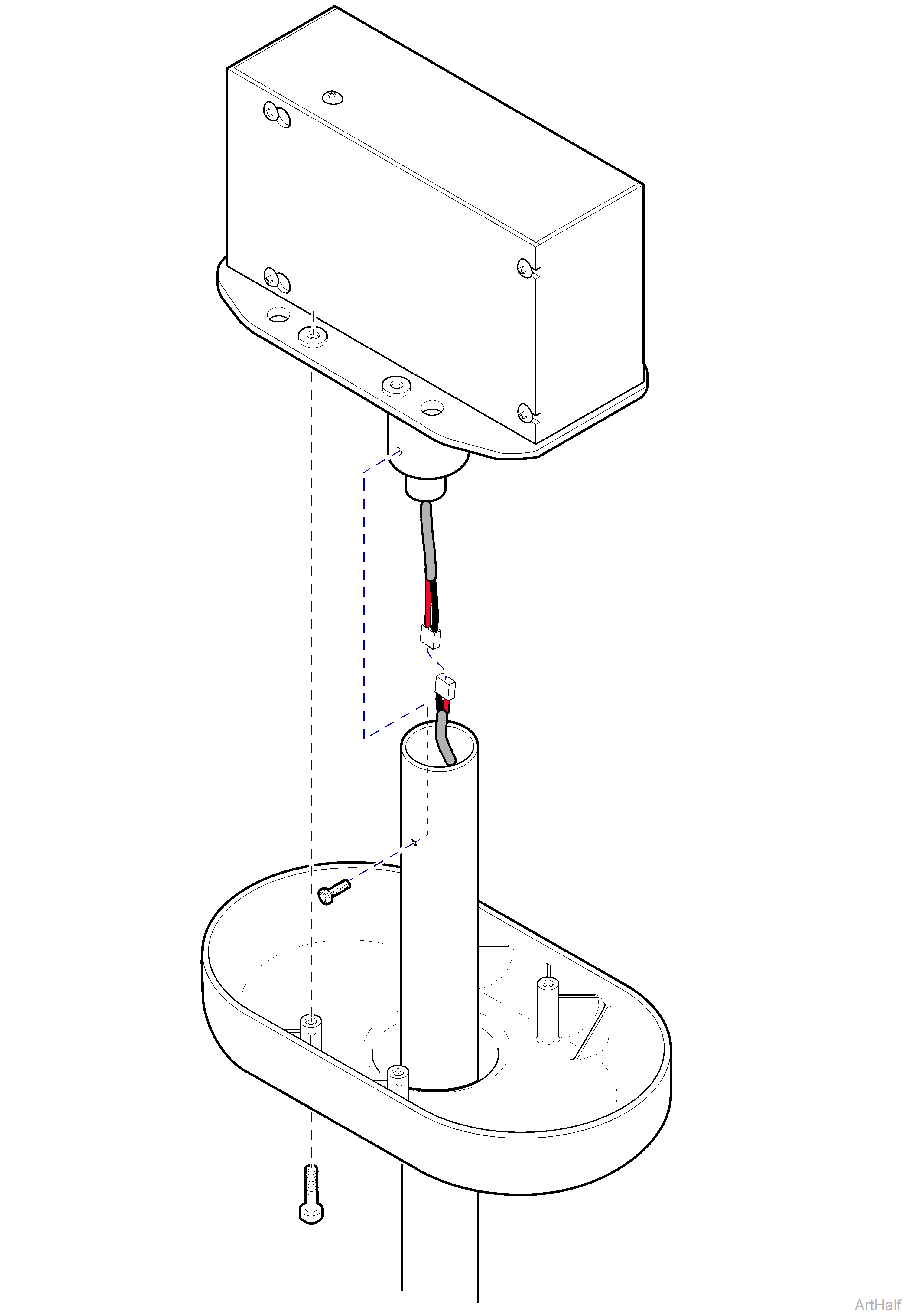

255 Light Ceiling Down Tube Removal / Installation Test and Repair
Removal
1.Remove cross tube / lighthead. Refer to: Cross Tube Removal / Installation.
2.Remove four screws and the ceiling cover.
3.Remove two screws, then separate down tube.
4.Route wire harness up through down tube.
Installation
WARNING
Screws securing down tube must be installed properly. Failure to do so may allow lighthead to fall, resulting in injury.
1.Install down tube, then secure with two screws.
2.Position ceiling cover, then secure with four screws.
3.Install cross tube / lighthead. Refer to: Cross Tube Removal / Installation.
