354 Light and 355 Light, Mobile Base / Vertical Tube
|
Model |
All |
| Serial Number | All |
Note: Use 002-2026-00 mounting hardware kit for base casting.

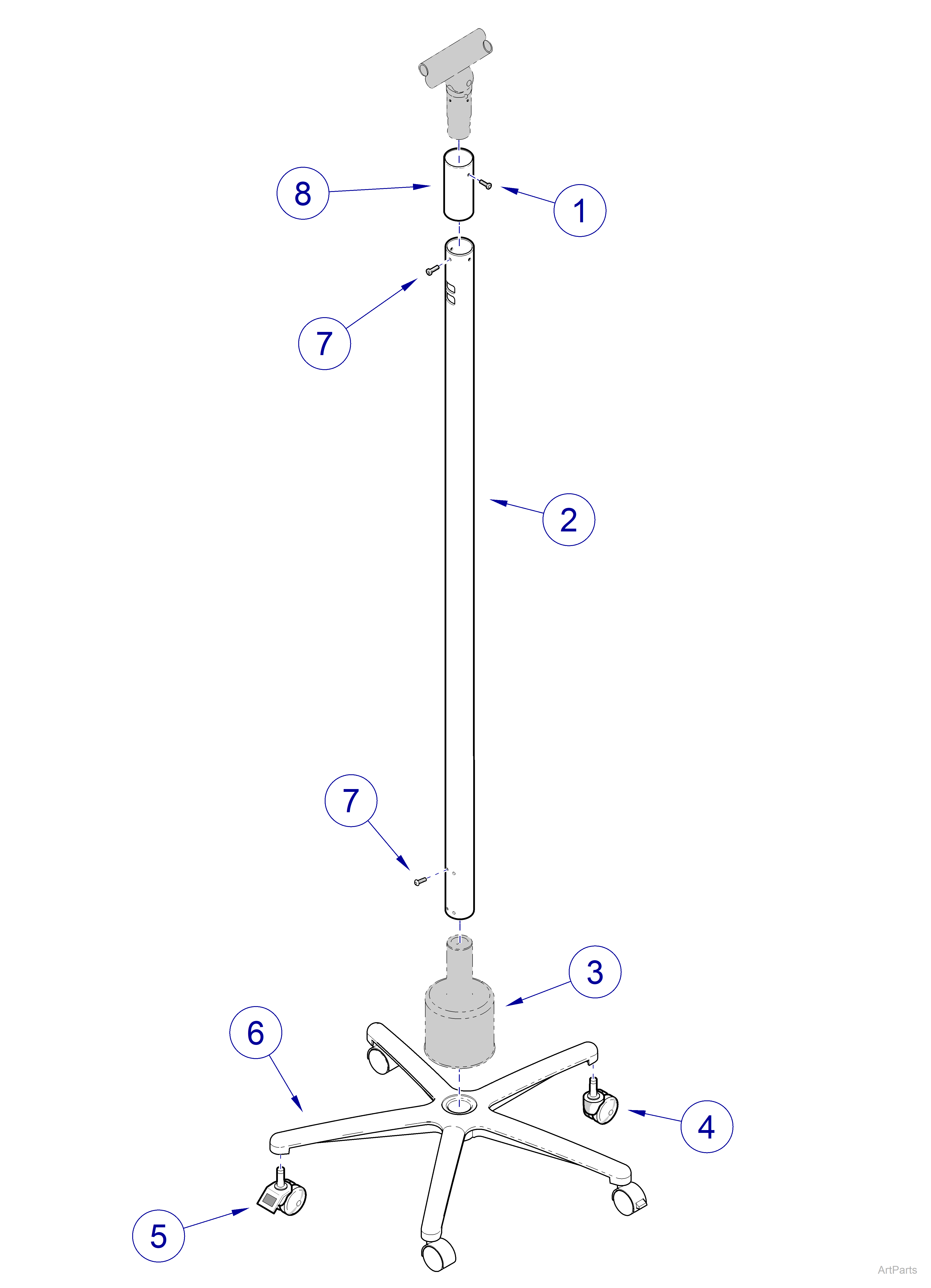

| Mobile Lighting Base / Vertical Tube | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0008-91 | Screw | 1 |
|
2 |
052-0315-00 | Vertical Tube | 1 |
|
3 |
Refer to: | Transformer / Housing (120V, 220V) | - |
|
4 |
016-0730-01 | Caster - Non-Locking | 3 |
|
5 |
016-0730-00 | Caster - Locking | 2 |
|
6 |
020-0427-01-312 | Base Casting | 1 |
|
7 |
040-0010-109 | Screw | 6 |
|
8 |
053-0807-00 | Sleeve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
