Model	M9 -050, -053	M11 -050, -051, -053
Serial Number	All	All

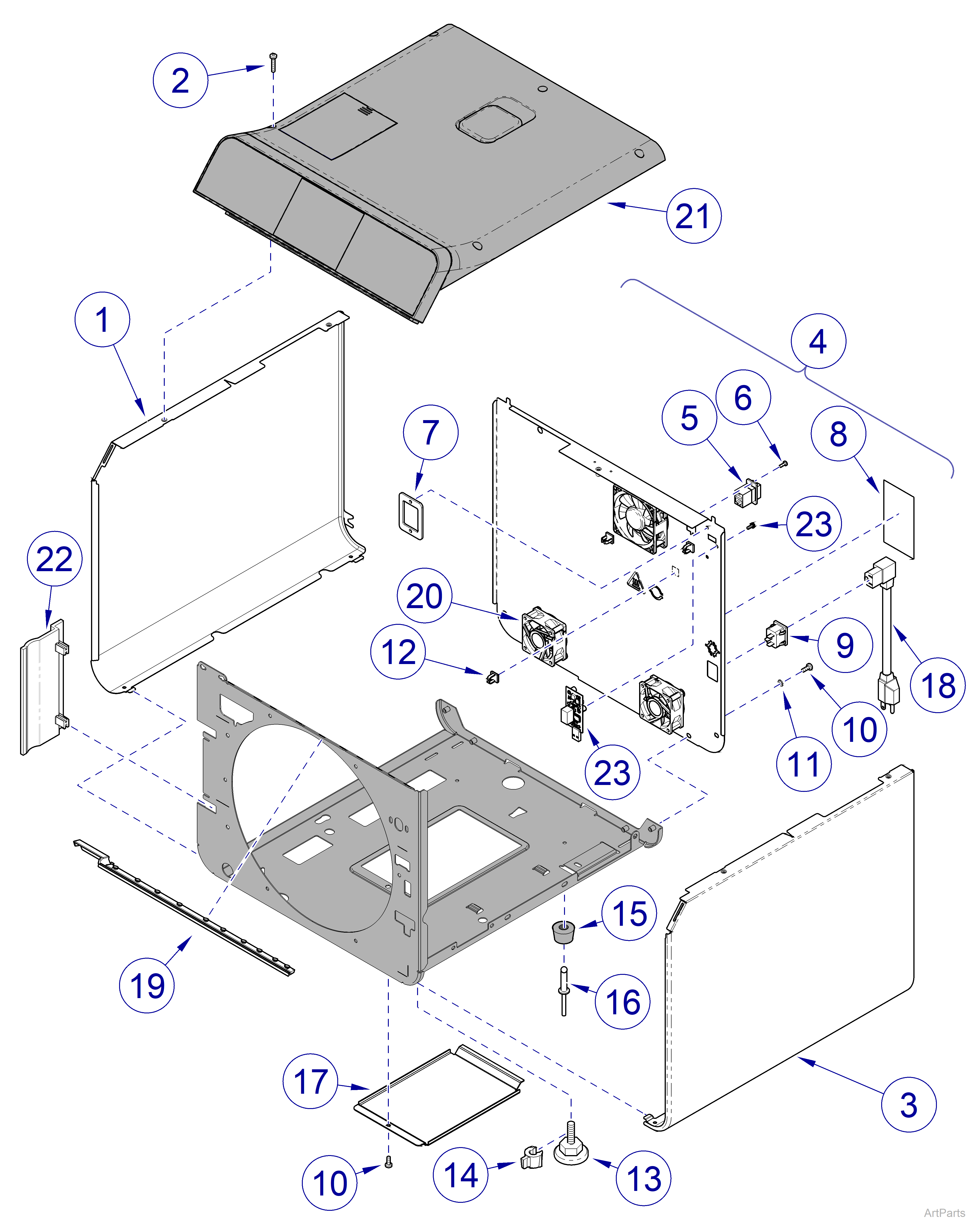

Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Main Enclosure
Item	Part Number	Description	Qty
1	LH Side Cover Assembly Options
	002-10875-01	M9 LH Cover Assembly	1
	002-10876-01	M11 LH Cover Assembly	1
2	040-0010-191	Screw - Torx SS Pan Head #10-24 x 1 inch	4
3	RH Side Panel Assembly Kit Options
	002-10875-00	M9 RH Side Panel Assembly Kit	1
	002-10876-00	M11 RH Side Panel Assembly Kit	1
4	Back Panel Options – Includes items 5 thru 12
	002-10857-00	M9 Back Panel Kit	1
	002-10856-00	M11 Back Panel Kit	1
5	015-11593-00	Ethernet Coupler	1
6	040-0004-22	Screw - Phillips Pan Head #4-40 x 5/16 inch	2
7	050-12760-00	Ethernet Mount Bracket	1
8		Serial Number Label	NSS
9	015-0639-00	Power Cord Receptacle	1
10	040-0010-190	Screw - Torx SS Pan Head #10-24 x 1/2 inch	AR
11	045-0001-31	Washer	AR
12	016-10425-00	Cable Holder	3
13	016-10252-00	Leveling Foot	2
14	053-10689-00-312	Leveling Spacer	2
15	016-0523-01	Rear Foot	2
16	042-0010-32	Rivet	2
17	050-11355-00	Base Inspection Cover	1
18	Power Cord
	015-0640-00	115 V Sterilizers	1
	015-0363-07	230 V Sterilizers	1
19	Steam Block Kit Options
	002-10891-00	M9 Steam Block Kit	1
	002-10891-01	M11 Steam Block Kit	1
20	Refer to:	Fan System Components	-
21	Refer to:	Top Cover Assembly Components	-
22	053-10600-00-813	Hinge Cover	1
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number
