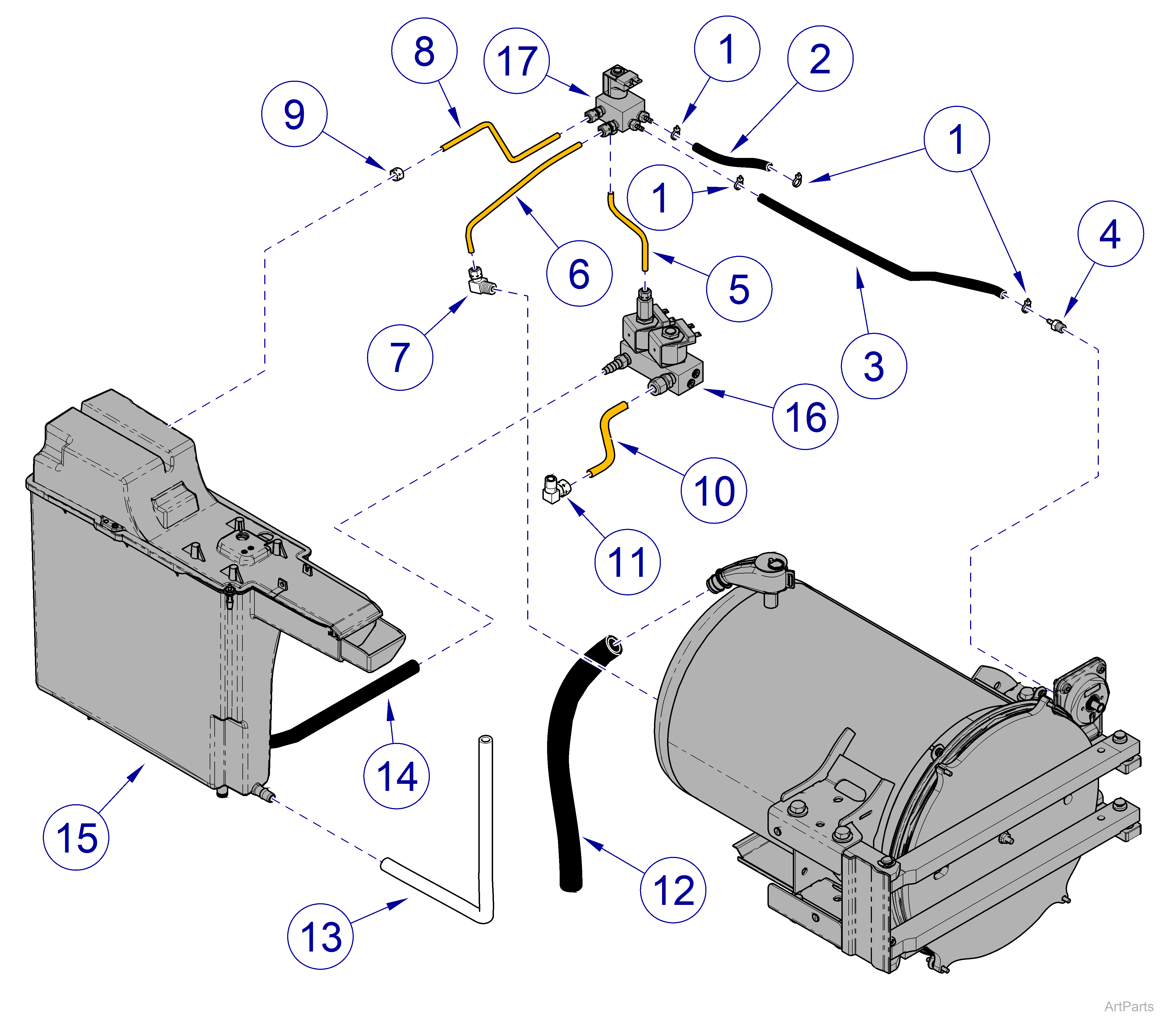

Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Tubing / Fittings
Serial Number Range: All
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |
| Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Tubing / Fittings | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-0013-05 | Hi-Temp Cable Tie | 4 |
|
2 |
014-10177-00 | M9/M11 Pressure Sensor Tubing | 1 |
|
3 |
Tubing Options | ||
|
|
014-10159-00 | M9 Actuator Inlet Tubing | 1 |
|
|
014-10160-00 | M11 Actuator Inlet Tubing | 1 |
|
4 |
Barb Fitting | NSS | |
|
5 |
M9/M11 Vent Tubing | 1 | |
|
6 |
Tubing Options | ||
| 014-10142-00 | M9 Chamber Outlet Tubing | 1 | |
| 014-10136-00 | M11 Chamber Outlet Tubing | 1 | |
|
7 |
014-0184-02 | Elbow Fitting | 1 |
|
8 |
Tubing Options | ||
| 014-10139-00 | M9 PCB Pressure Tubing | 1 | |
| 014-10141-00 | M11 PCB Pressure Tubing | 1 | |
|
9 |
014-0392-00 | Compression Sleeve/Nut | 1 |
|
10 |
Tubing Options | ||
| 014-10133-00 | M9 Chamber In/Out Tubing | 1 | |
| 014-10135-00 | M11 Chamber In/Out Tubing | 1 | |
|
11 |
014-0184-01 | Elbow Fitting | 1 |
|
12 |
Tubing Options | ||
| 053-10343-00 | M9 Pressure Relief Tubing | 1 | |
| 053-10343-01 | M11 Pressure Relief Tubing | 1 | |
|
13 |
Tubing Options | ||
| 014-10244-01 | M9 Drain Tubing | 1 | |
| 014-10244-02 | M11 Drain Tubing | 1 | |
|
14 |
Tubing Options | ||
| 014-10149-00 | M9 Water Level Sensor Tubing | 1 | |
| 014-10149-01 | M11 Water Level Sensor Tubing | 1 | |
|
15 |
Tubing Options | ||
| 053-1033-07 | M9 Chamber Fill Tubing | 1 | |
| 053-1033-06 | M11 Chamber Fill Tubing | 1 | |
|
16 |
Refer to: | Reservoir / Drain Tubing Compnnets | - |
|
17 |
Refer to: | Fill / Vent Valve Components | - |
|
18 |
Refer to: | Air Valve Components | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
