204 and 604 Table optional Receptacle System Troubleshooting

Model

204 -001 thru -004, -011, -012 604 -001 thru -003
Serial NumberAllAll

Table Receptacle Operation

With the receptacle power cord properly connected, line voltage (115 VAC) is supplied directly to the two receptacle circuit breakers.

115 VAC flows thru the two circuit breakers to the receptacle. If the receptacle's maximum load is exceeded, the circuit breakers interrupt power to the receptacle.

Maximum Load, both outlets combined = 115 VAC, 5 amps

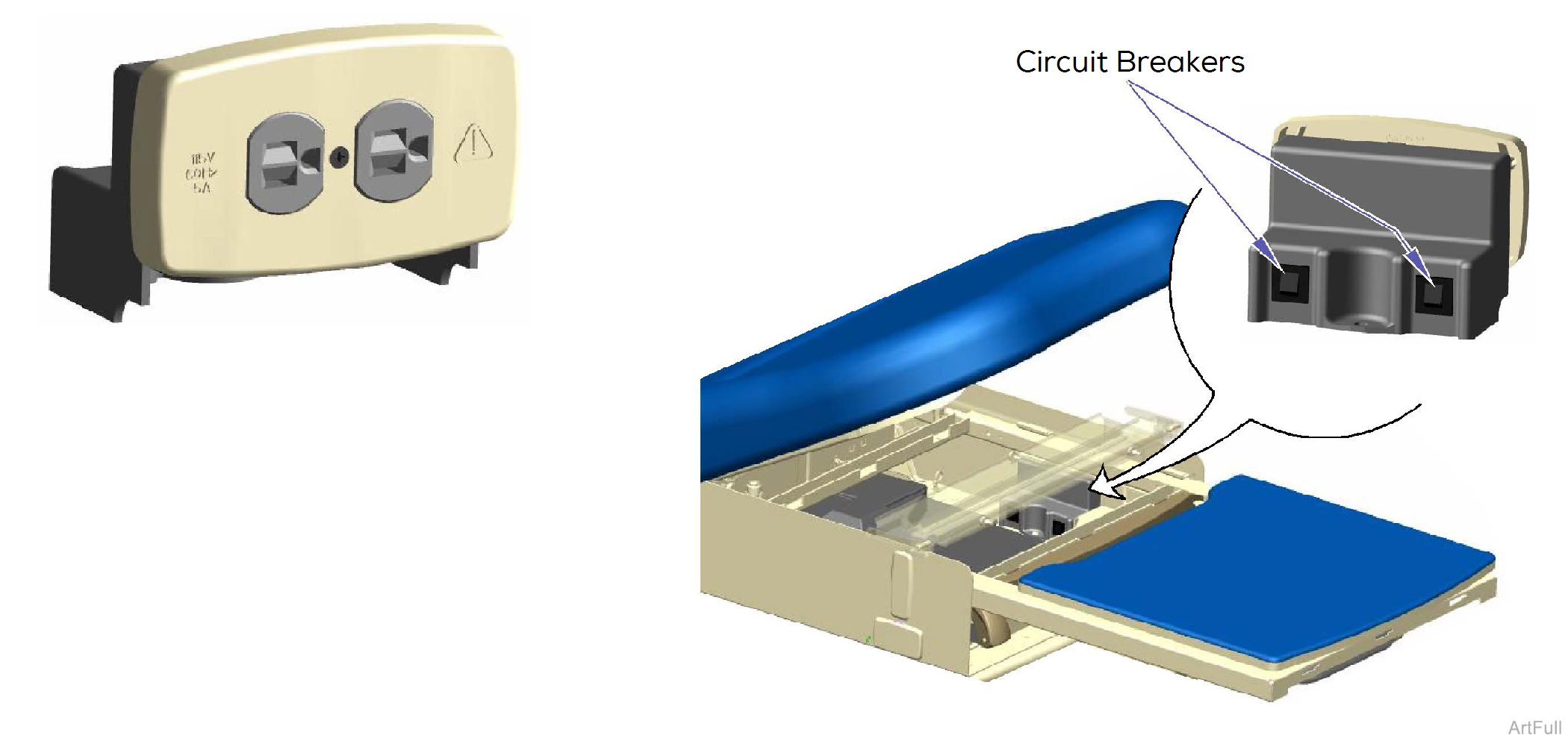

204 and 604 Table table receptacle system

204 and 604 Table Are Circuit Breakers Tripped

1.Are circuit breakers tripped? Push toggle switches inward to reset.

2.Check the following connections for loose or disconnected wires:

a.Receptacle power cord to supply source

b.Receptacle power cord to circuit breakers

c.Circuit breakers to receptacle

3.Perform Receptacle Supply Voltage Test. Refer to: Table Receptacle Text and Repair
