244 Table Power Inlet Test and Repair
If a problem is suspected, Refer to: Power To The Table for troubleshooting.

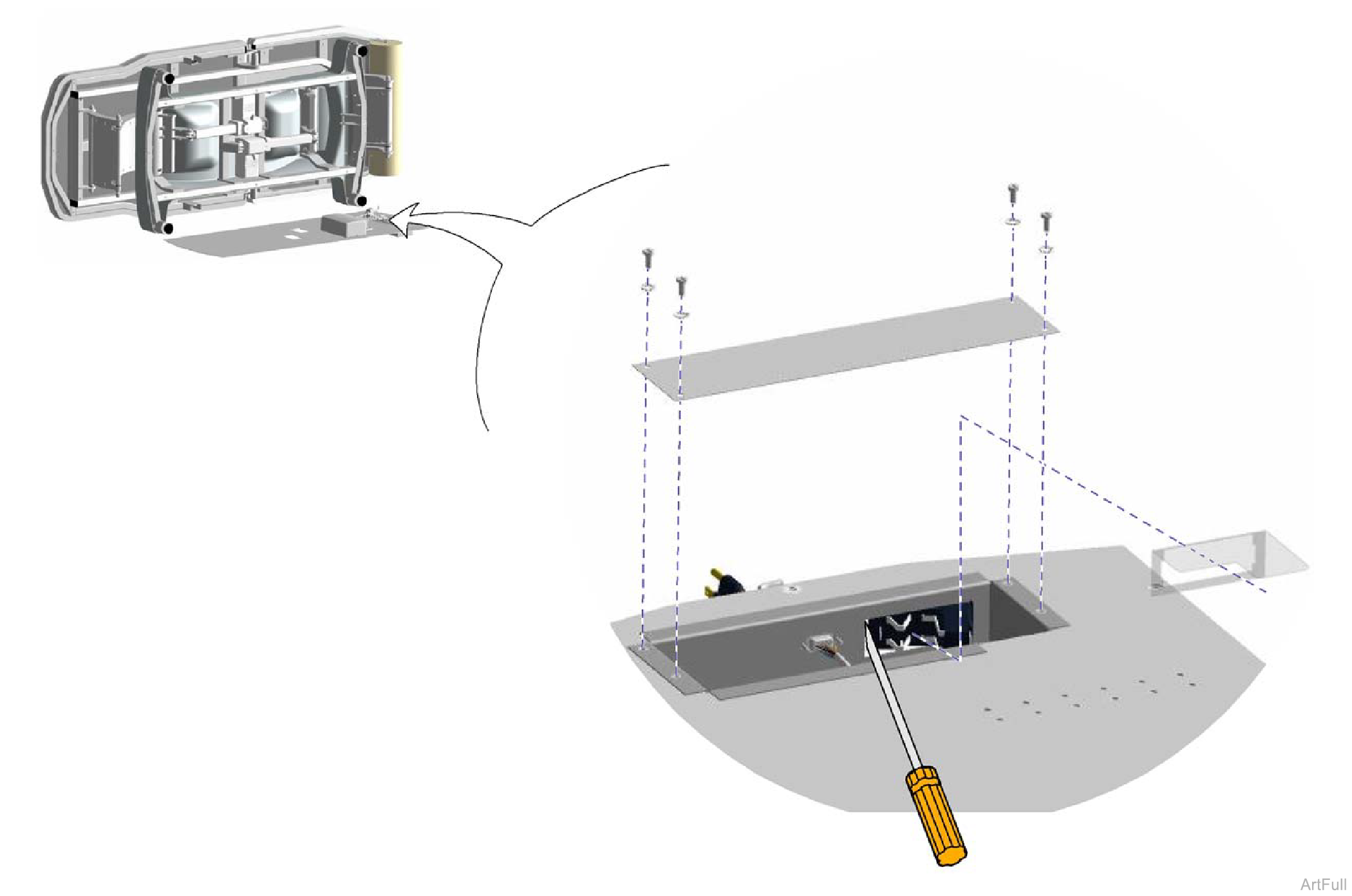

Removal
Caution
Line voltage (120 VAC) is present at the power inlet
1.Disconnect power to table and remove bottom cover.
2.Remove housing cover.
3.Tag and disconnect wiring from inlet. Remove inlet shield.
4.Press tabs on side of inlet, then push outward.
Installation
1.Push inlet thru housing until it snaps into place.
2.Install inlet shield and connect wiring to proper terminals.
3.Install housing cover.
4.Install bottom cover.
