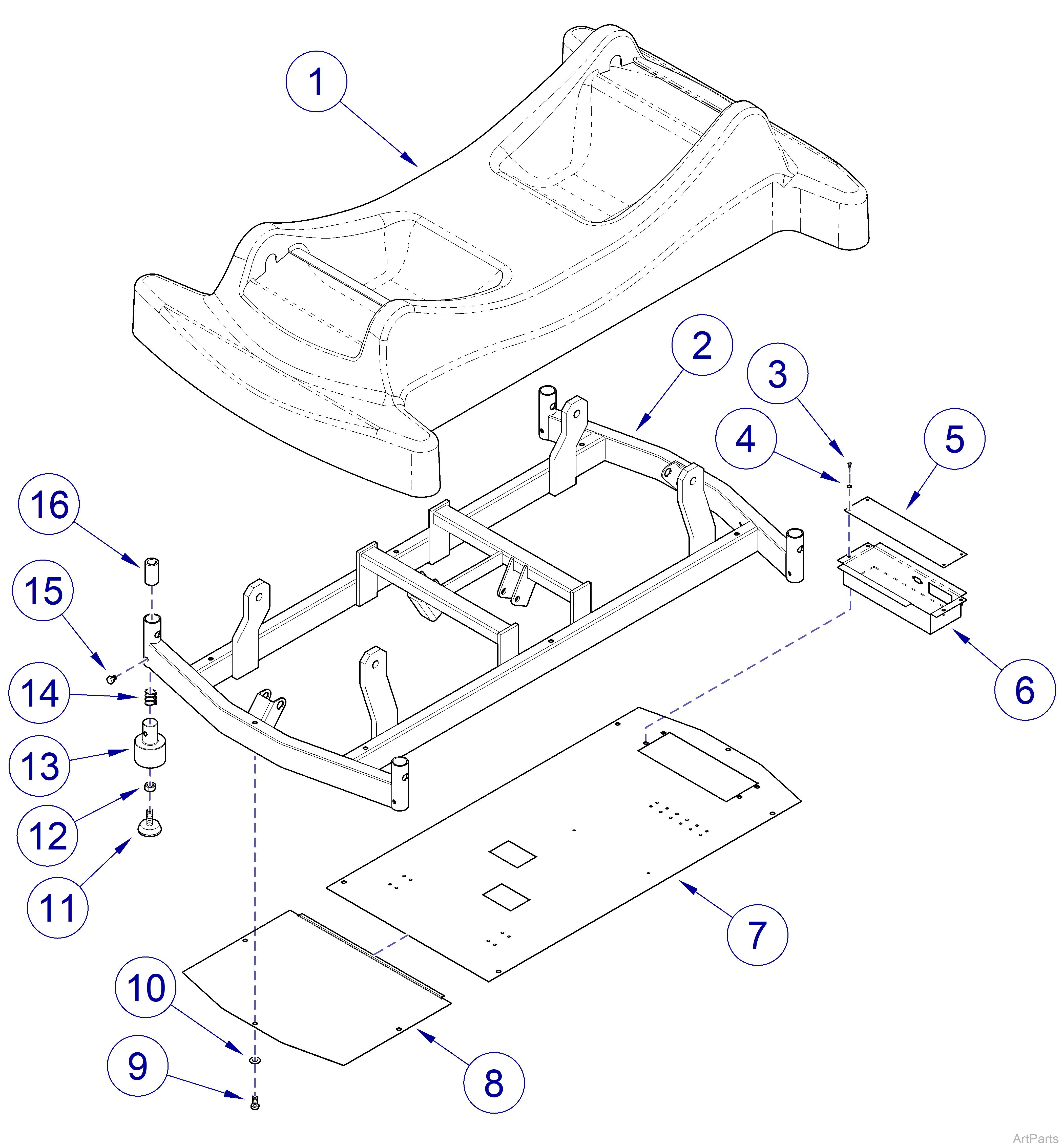

244 Table Base Covers and Leveling Feet
Serial Number Range: Prior to June 2005
|
Model |
244 |
| Serial Number | Prior to June 2005 |
| 244 Table Base Covers and Leveling Feet | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PFG330501-01 | Base Cover | 1 |
|
2 |
Refer to: | Base Frame Components | - |
|
3 |
PFVXM4041 | Screw M4 x 10 mm | 4 |
|
4 |
PFRDX1005 | Lockwasher D5 | 4 |
|
5 |
PFDD117002-03 | Power Inlet Housing Cover | 1 |
|
6 |
PFDD117002-03 | Power Inlet Housing | 1 |
|
7 |
PFDD117002-01 |
Bottom Cover - Head-end | NLA |
|
8 |
PFDD117002-04 |
Bottom Cover - Foot-end | NLA |
|
9 |
PFVXM7061 | Screw M6 x 16mm | 10 |
|
10 |
PFRDX2106 | Washer D6 | 10 |
|
11 |
PFPAT5012 | Leveling Foot | 4 |
|
12 |
PFECX2012 | Nut M12 - stainless steel | 4 |
|
13 |
PFD116401 | Housing | 4 |
|
14 |
PFRES0199 | Spring | 4 |
|
15 |
PFVXM7080 | Screw M8 x 10 mm | 8 |
|
16 |
PFENT1645 | Spacer | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

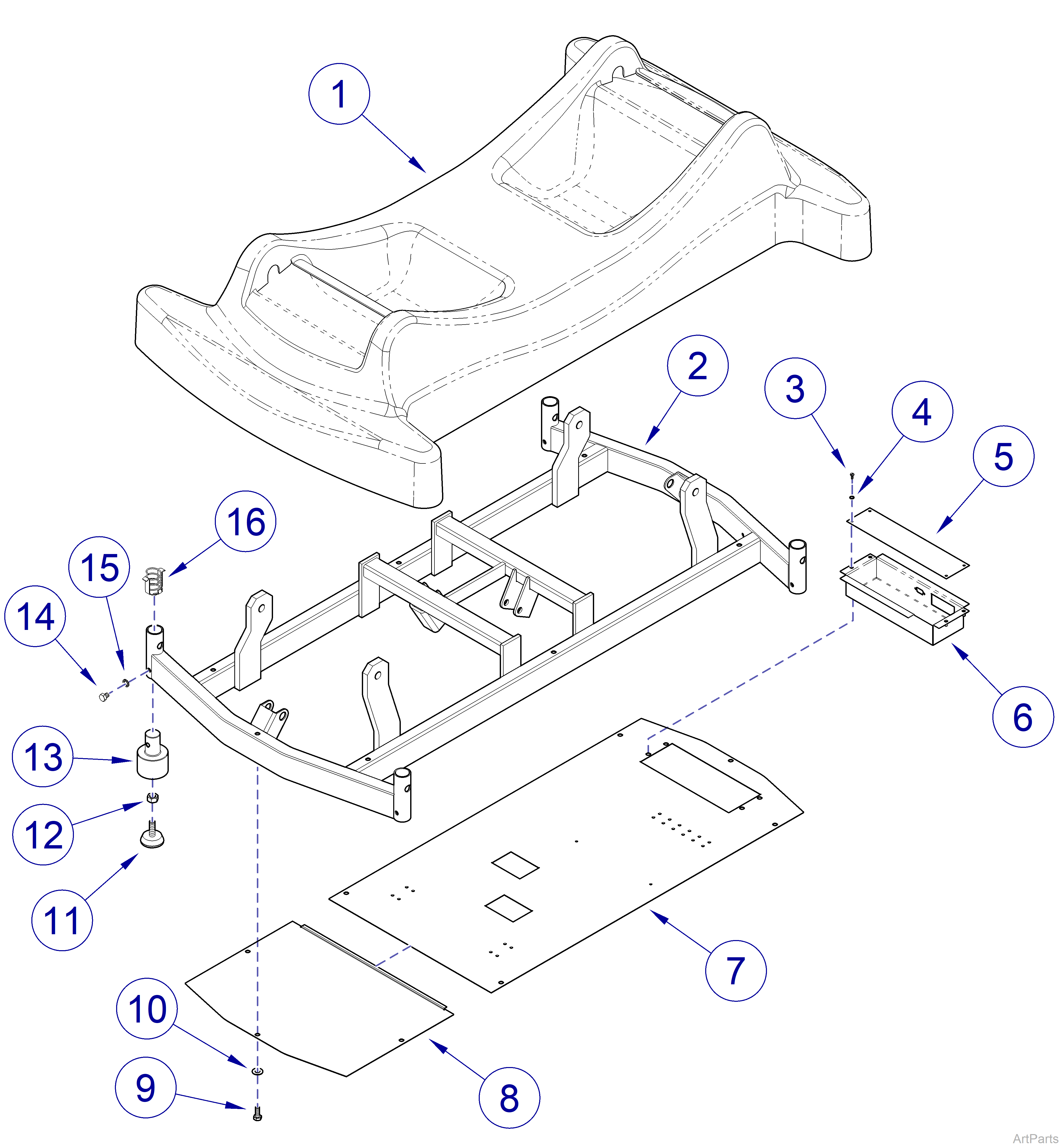

Serial Number Range: June 2005 thru Present
|
Model |
244 |
| Serial Number | June 2005 thru Present |
| 244 Table Base Covers and Leveling Feet | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PFG330501-01 | Base Cover | 1 |
|
2 |
Refer to: | Base Frame Components | - |
|
3 |
PFVXM4041 | Screw M4 x 10 mm | 4 |
|
4 |
PFRDX1005 | Lockwasher D5 | 4 |
|
5 |
PFDD117002-03 | Power Inlet Housing Cover | 1 |
|
6 |
PFDD117002-03 | Power Inlet Housing | 1 |
|
7 |
PFDD117002-01 |
Bottom Cover - Head-end | NLA |
|
8 |
PFDD117002-04 |
Bottom Cover - Foot-end | NLA |
|
9 |
PFVXM7061 | Screw M6 x 16mm | 10 |
|
10 |
PFRDX2106 | Washer D6 | 10 |
|
11 |
PFPAT5012 | Leveling Foot | 4 |
|
12 |
PFECX2012 | Nut M12 - stainless steel | 4 |
|
13 |
PFD116401 | Housing | 4 |
|
14 |
PFVXM7080 | Screw M8 x 10 mm | 8 |
|
15 |
PFRDX1008 | Washer D8 | 8 |
|
16 |
PFD117006 | Spring with fixation | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
