Canis Major Safety Switch Test and Repair
|
Model |
CMWO | CMWS |
| Serial Number | All | All |
The Dry Table has a safety feature that is designed to disable the down function when an obstruction is encountered beneath the work surface.

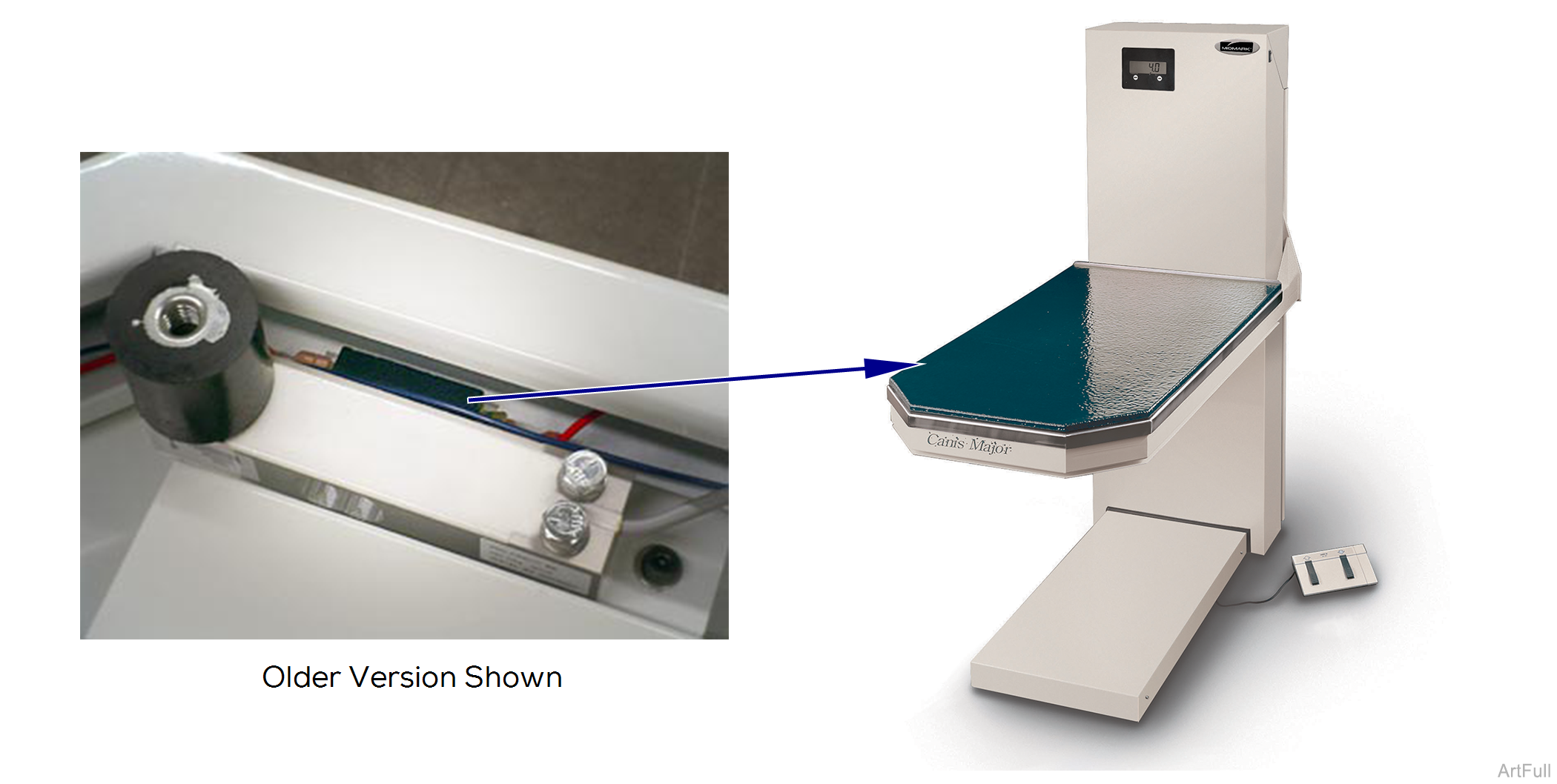

The feature consists of four micro switches, two on either side, which are activated by the safety pan.
Safety Switch Test
1.Verify there are no obstructions under table. Jiggling the safety pan will almost always free up an offending safety switch.
2.Check to see if table will move down.

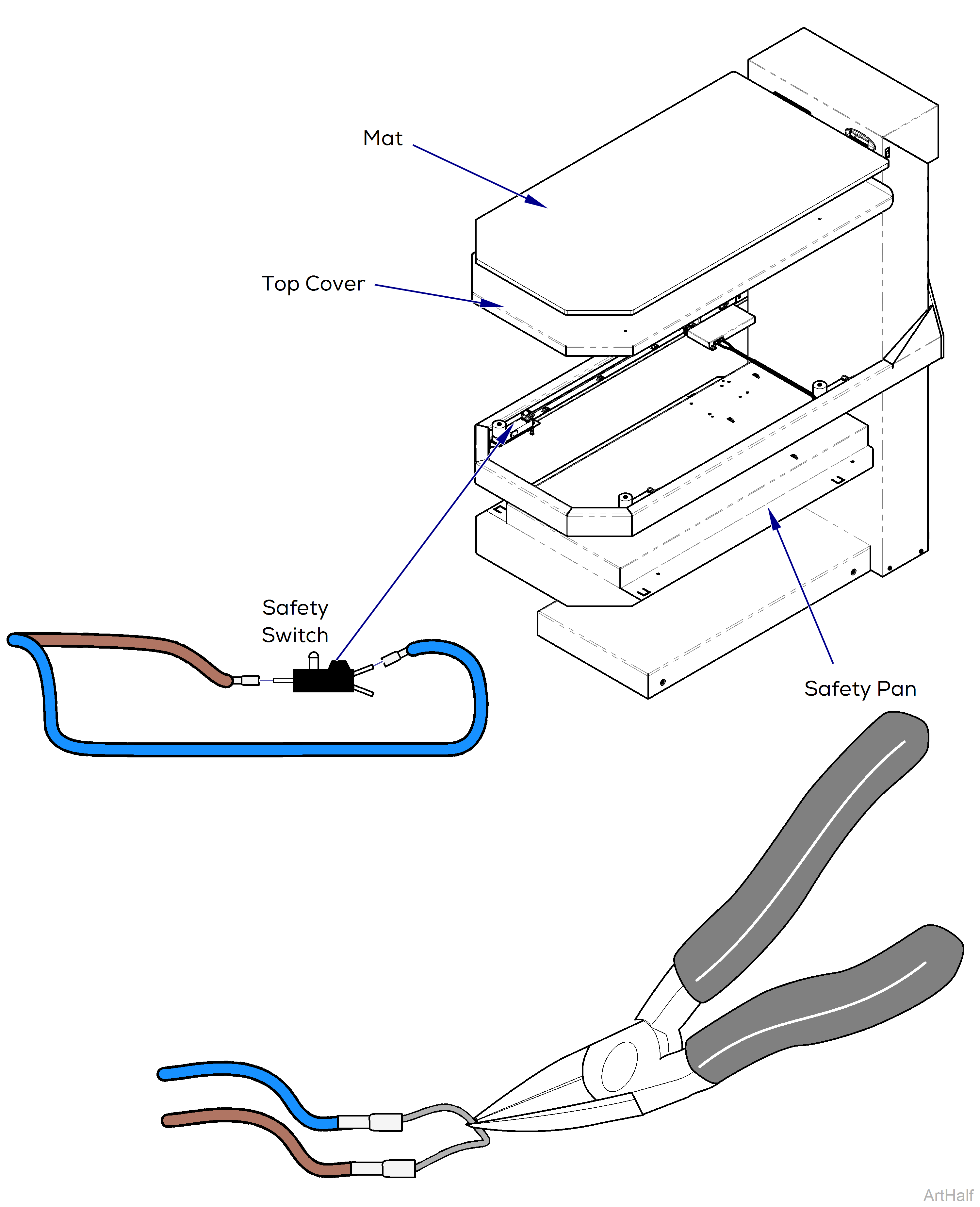

3.Remove table top cover and safety pan. Refer to: Table Top Cover and Safety Pan
4.To bypass safety switch, disconnect wires from switch.
5.Bend a paper clip into a "U" shape. Hold paper clip with insulated needle nose pliers.
6.Insert paper clip ends into wire terminals.
Table should move down when switch is jumped. Bypass each safety switch to find nonworking switch.
