222 Exam Table, 223 and 623 Table Top Cover - Back Limit Switch Access Procedures
Removal
1.Lower table shrouds. Refer to:Table Shrouds

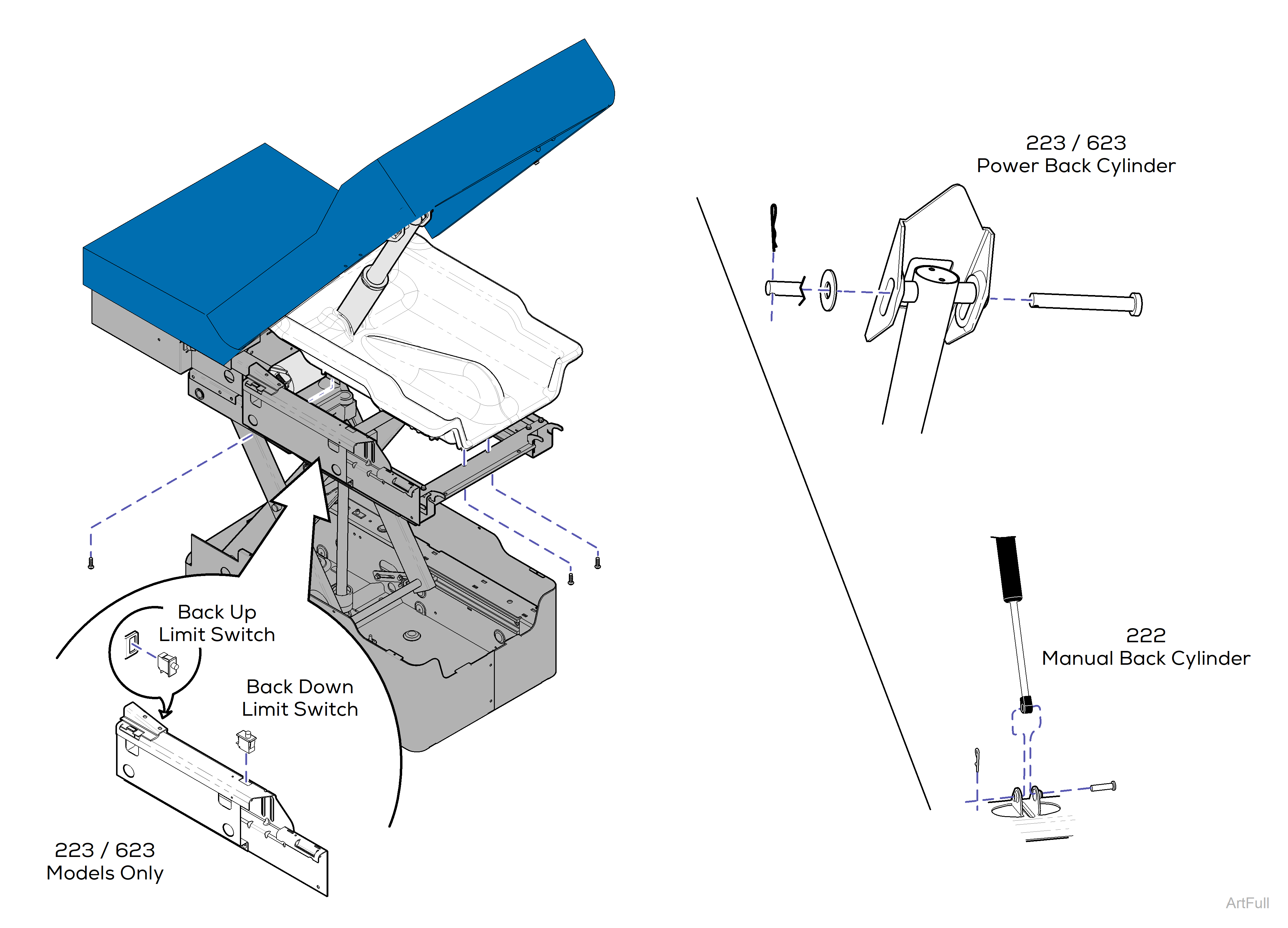

2.Remove screws securing top cover.
The back limit switches can be accessed without completely removing the top cover. But if removing the cover is necessary, perform Step 3.
3.Partially separate the back lift cylinder as shown. Slide top cover off of cylinder.
Installation
1.Slide top cover over back cylinder. Reattach back cylinder.
2.Secure top cover with screws removed in Step 2.
3.Reattach table shrouds.
