Vet Synthesis® Tables Components
Refer to: the Cabinet Color Options for the order number extension of your desired color.

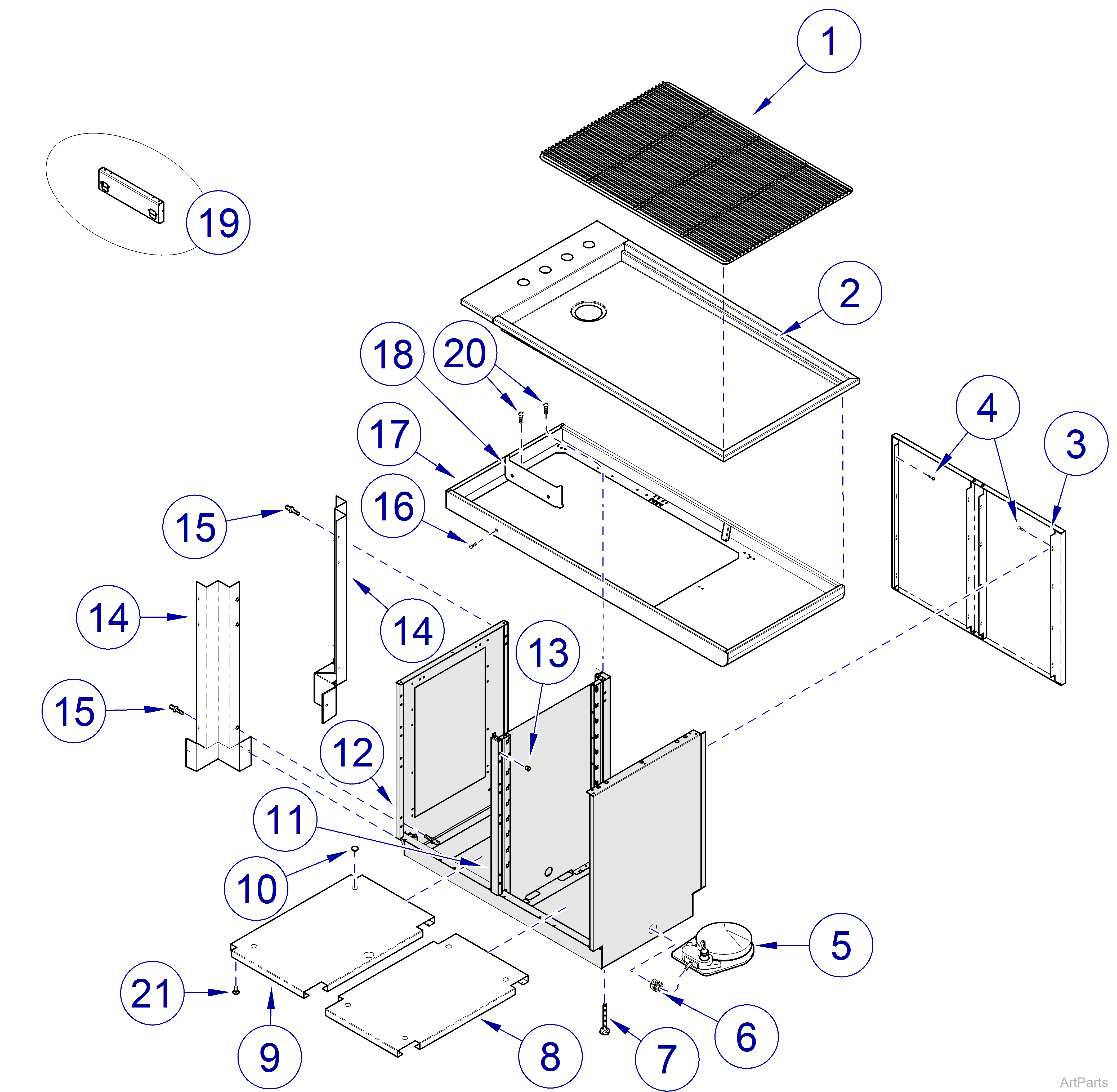

Wet Table W/ Standard Depth Tub
|
Model |
VT |
| Serial Number | V1642131 thru Present |
48" and 60" w/ two zones and overhang models shown.
| Vet Synthesis® Tables Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Recessed Rack Options | ||
| 030-2195-00 | 33” Recessed Rack - 48” Table | 1 | |
| 030-2195-01 | 45” Recessed Rack - 60” Table | 1 | |
| 9A746001 | Short Table Veterinary Grate - 2 sections | 1 | |
| 9A746002 | Long Table Veterinary Grate - 3 sections - shown | 1 | |
|
2 |
Stainless Steel Tub Options | ||
| 050-9895-00 | 48” Stainless Steel Tub | 1 | |
| 050-9896-00 | 60” Stainless Steel Tub | 1 | |
|
3 |
Back Panel Assembly | NLA | |
|
4 |
040-0010-157 | Screw #10-24 x 5/8” | AR |
|
5 |
016-1040-00 | Foot Control, 4 Port - Units w/ VetPro Only | 1 |
|
6 |
053-0068-09 | Strain Relief Bushing - Units w/ VetPro Only | 1 |
|
7 |
016-0557-00 | Leveling Screw | 4 |
|
8 |
Base Bottom | NLA | |
|
9 |
Sink Base Bottom | ||
| Standard Sink Base Bottom | NLA | ||
| Sink Base Bottom w/ VetPro Hole | NLA | ||
|
10 |
029-6676-0x | Base Hole Plug - four per bag, colors vary Refer to: Common Parts | 1 |
|
11 |
Slide Bracket Assembly | NSS | |
|
12 |
Shell Assembly | NSS | |
|
13 |
Refer to: | Nutsert in Common Parts | - |
|
14 |
36” Bracket Assembly | NLA | |
|
15 |
029-1728-06 |
Hardware Kit Refer to: Common Parts |
1 |
|
16 |
040-0250-13 | Pan Head Phillips Screw 1/4-20 x 5/8” | 4 |
|
17 |
Upper Wrap | NLA | |
|
18 |
050-9871-00-216 | Backer Plate/Support - Units w/ VetPro Only | 1 |
|
19 |
040-0010-113 | Pan Head Phillips Screw #10-24 x 5/8” | AR |
|
20 |
040-0010-109 | Pan Head Phillips Screw #10-24 x 3/8” | AR |
|
21 |
053-2568-00 | Bumper | 6 |
|
22 |
054-0611-00 | Foam Tape, Not Shown - Apply between stainless steel tub and upper wrap, also between back panel and brace | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Wet Table W/ Shallow Depth Tub
|
Model |
VT |
| Serial Number | V1642131 thru Present |
48" and 60" w/ two zones and overhang models shown.
| Vet Synthesis® Tables Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Recessed Rack Options | ||
| 030-2195-00 | 33” Recessed Rack - Shown | 1 | |
| 030-2195-01 | 45” Recessed Rack | 1 | |
| 9A746001 | Short Table Veterinary Grate - 2 sections - shown | 1 | |
| 9A746002 | Long Table Veterinary Grate - 3 sections | 1 | |
|
2 |
Stainless Steel Tub Options | ||
| 050-9897-00 | 48” Stainless Steel Tub | 1 | |
| 050-9898-00 | 60” Stainless Steel Tub | 1 | |
|
3 |
Back Panel Assembly | NLA | |
|
4 |
040-0010-157 | Screw #10-24 x 5/8” | AR |
|
5 |
016-1040-00 | Foot Control, 4 Port - Units w/ VetPro Only | 1 |
|
6 |
053-0068-09 | Strain Relief Bushing - Units w/ VetPro Only | 1 |
|
7 |
016-0557-00 | Leveling Screw | 4 |
|
8 |
Base Bottom | NLA | |
|
9 |
Sink Base Bottom Options | ||
| Standard Sink Base Bottom | NLA | ||
| Sink Base Bottom w/ VetPro Hole | NLA | ||
|
10 |
029-6676-0x | Base Hole Plug - four per bag, colors vary Refer to:Common Parts | 1 |
|
11 |
Slide Bracket Assembly | NSS | |
|
12 |
Shell Assembly | NSS | |
|
13 |
Refer to: | Nutsert in Common Parts | - |
|
14 |
Corner Bracket Assembly | NLA | |
|
15 |
029-1728-06 | Hardware Kit Refer to: Common Parts | 1 |
|
16 |
040-0250-13 | Pan Head Phillips Screw 1/4-20 x 5/8” | 4 |
|
17 |
Upper Wrap | NLA | |
|
18 |
050-9574-00-216 | Backer Plate - Units w/ VetPro Only | 1 |
|
19 |
Support Options - Units w/ VetPro Only | ||
| 050-9714-00-216 | 15” Support - Shown | 1 | |
| 050-9714-01-216 | 21” Support | 1 | |
|
20 |
040-0010-113 | Pan Head Phillips Screw #10-24 x 5/8” | AR |
|
21 |
040-0010-109 | Pan Head Phillips Screw #10-24 x 3/8” | AR |
|
22 |
054-0611-00 | Foam Tape - Apply between stainless steel tub and upper wrap, also between back panel and brace | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

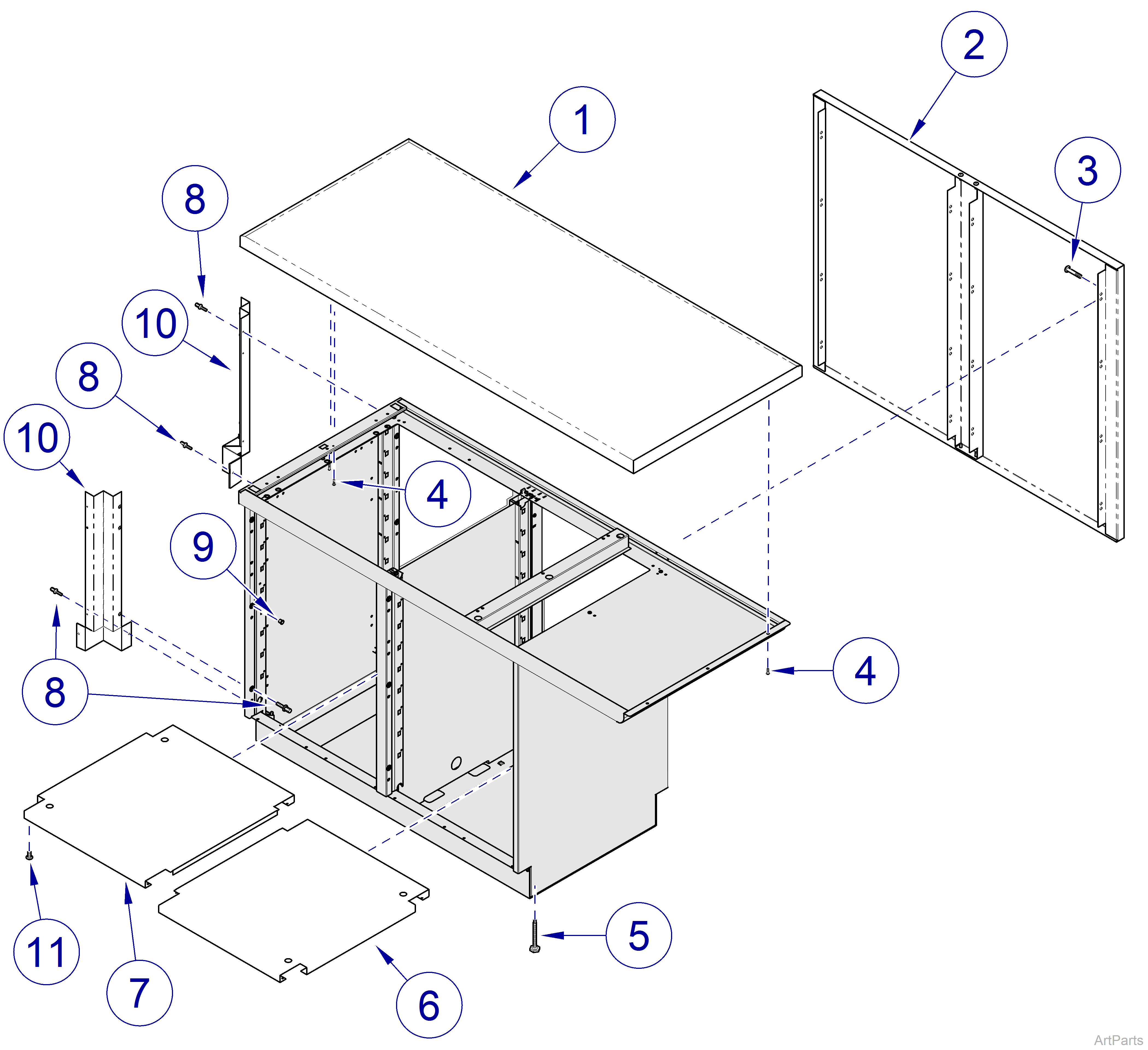

Dry Table
|
Model |
VT |
| Serial Number | V1642131 thru Present |
48" and 60" w/ two zones and overhang models shown.
| Vet Synthesis® Tables Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Top Assembly Options | ||
| 029-6550-00 | 44” Island | 1 | |
| 029-6550-01 | 59” Island | 1 | |
| 029-6551-00 | 49” Penisula | 1 | |
| 029-6551-01 | 61” Penisula | 1 | |
|
2 |
Back Panel | NLA | |
|
3 |
040-0010-157 | Pan Head Phillips Screw #24 x 5/8” | 8 |
|
4 |
040-0010-48 | Pan Head Phillips Screw #13 x 5/8” | AR |
|
5 |
016-0557-00 | Leveling Screw | 4 |
|
6 |
Base Bottom | NLA | |
|
7 |
Base Bottom | NLA | |
|
8 |
029-1728-06 | Hardware Kit Refer to: Common Parts | 1 |
|
9 |
Refer to: | Nutsert in Common Parts | - |
|
10 |
Bracket Assembly | NLA | |
|
11 |
040-0010-109 | Pan Head Phillips Screw #10-24 x 3/8” | AR |
|
12 |
054-0611-00 | Foam Tape, Not Shown - Apply between back panel and brace | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
