Midmark® Smart G-Vacuum Front Panel Controls
|
Model |
All |
| Serial Number | V2200 thru Present |
Single models require one vacuum assembly. Twin models require two vacuum assemblies.

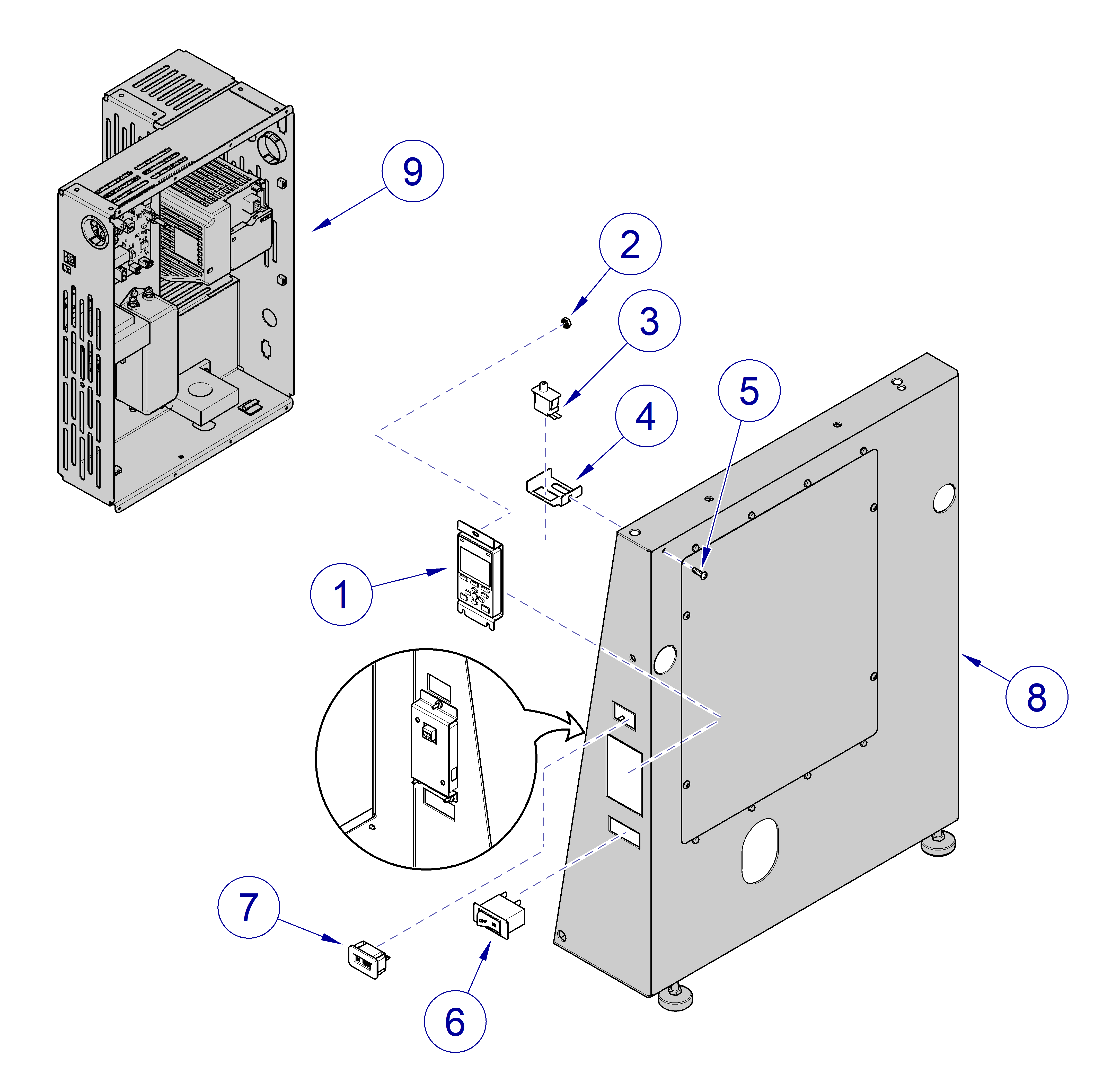

| PowerVac G Front Panel Controls | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | 002-11049-00 | Keypad Kit | 1 |
|
2 |
61402702 | Keps Nut #6-32 | 3 |
| 3 | 015-1055-00 | Limit Switch | 1 |
|
4 |
050-6581-00-312 | Mounting Bracket | 1 |
| 5 | 040-0010-109 | Screw 10-24 x 3/8 inch | 1 |
| 6 | 015-11876-00 | Switch, Circuit Breaker | 1 |
|
7 |
20235600 | Hour Meter | 1 |
|
8 |
Refer to: | Vacuum Base Unit | - |
|
9 |
Refer to: | Electrical Box | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
