Midmark® Smart G-Vacuum Separator
Single models require one separator assembly. Twin models require two separator assemblies.
Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |
Serial Number Label on Separator Tanks

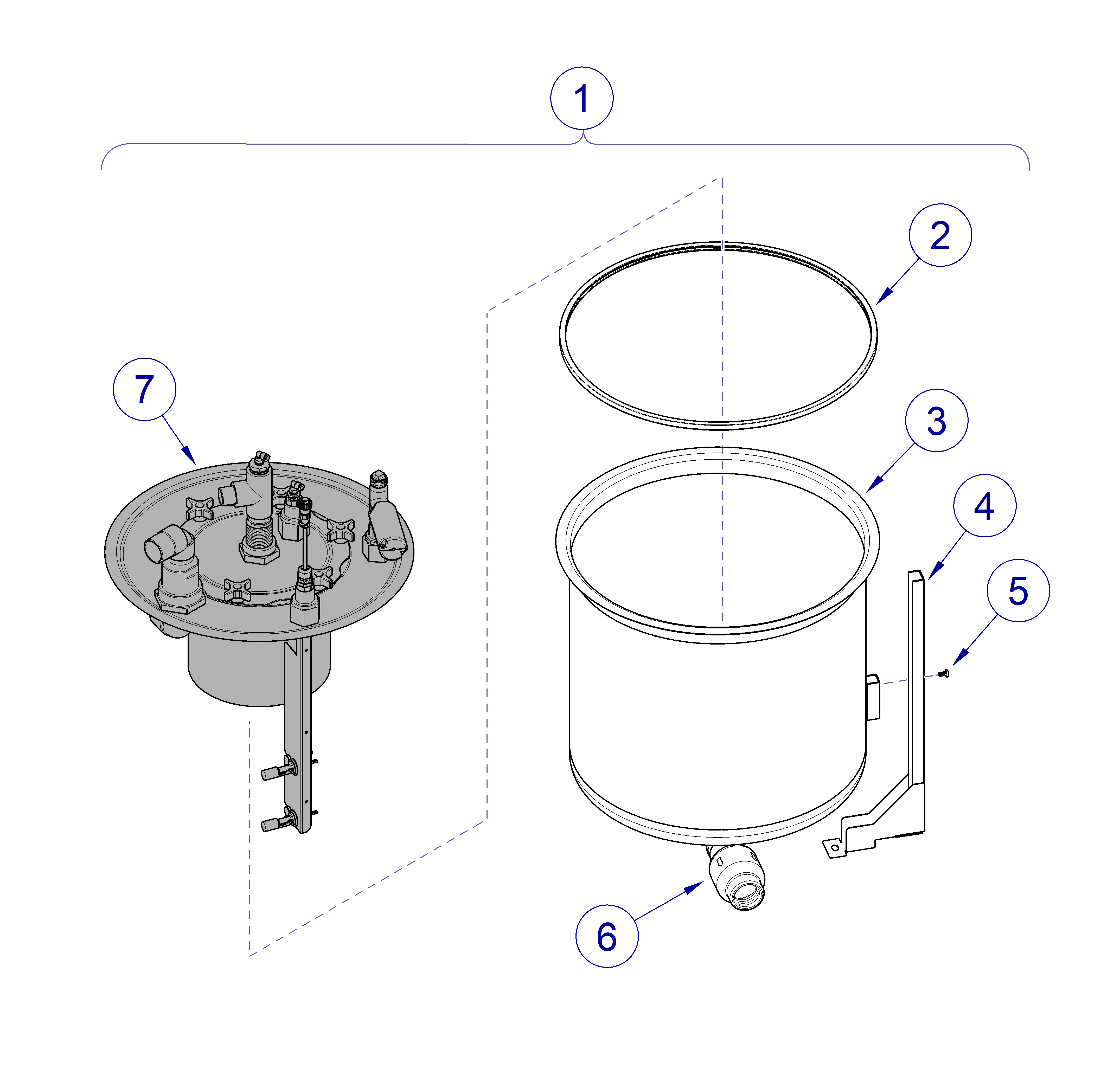

| Separator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-11701-00 | Separator Assembly - includes items 2 thru 7 | 1 |
|
2 |
053-2159-00 | Gasket | 1 |
|
3 |
030-1905-00-312 | Tank | 1 |
|
4 |
030-1918-00-312 | Legs | 3 |
|
5 |
040-0250-162 | Screw 1/4 inch 20 x 1/2 inch ‘TT’ | 6 |
|
6 |
Refer to: | Drain Assembly | - |
|
7 |
Refer to: | Separator Lid Assembly | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
