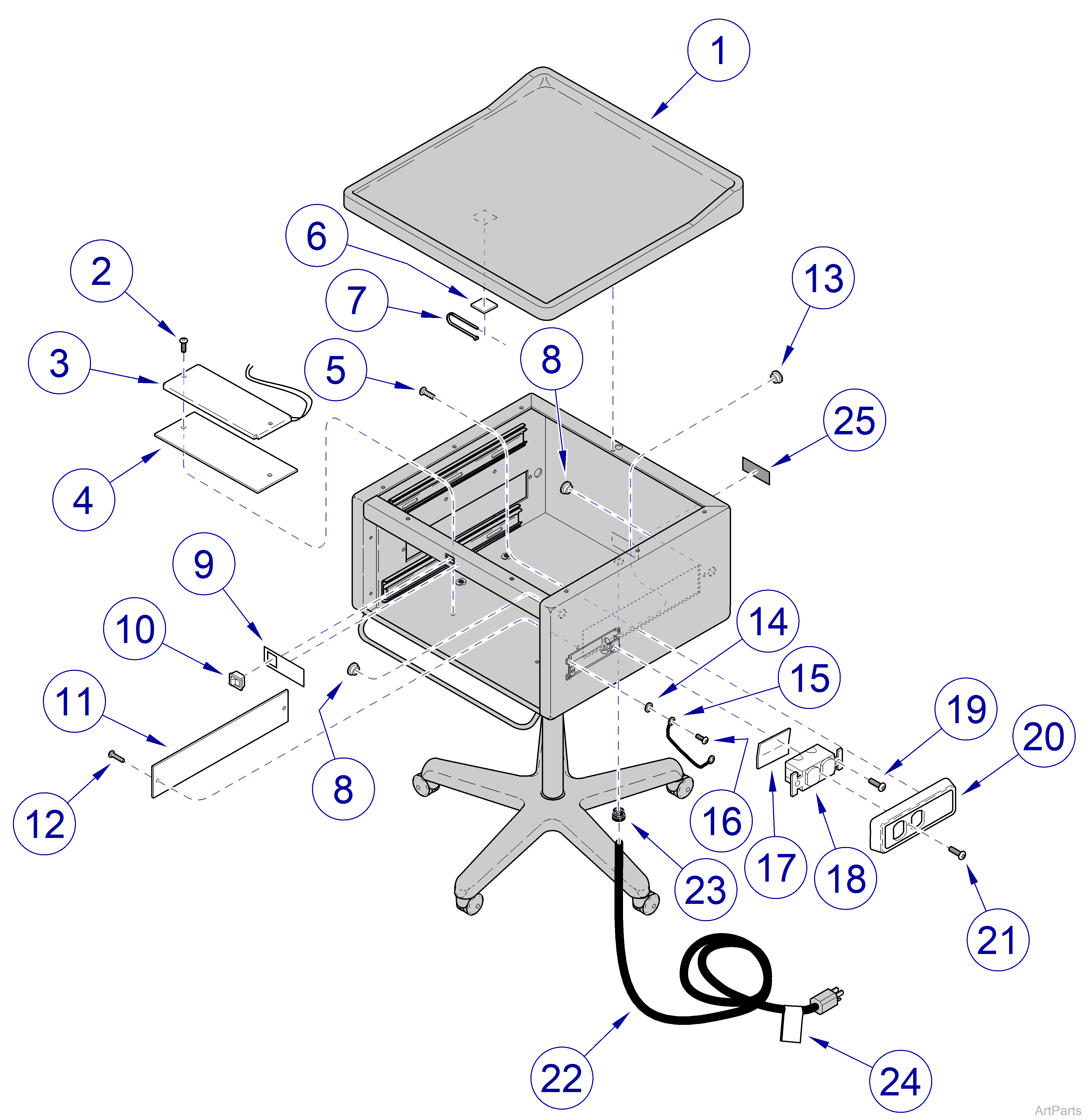

265 Cart Electrical Components
|
Model |
265 |
| Serial Number | All |
Refer to: the Cabinet Color Options for the order number extension of your desired color.
| 265 Cart Electrical Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | Fixed Height Cabinet Assemblies or Adjustable Height Cabinet Assemblies | - |
|
2 |
040-0010-113 | Screw #10-24 x 5/8" | 2 |
|
3 |
029-1223-00 | Heater Plate Assembly - 60 Watt | 1 |
|
4 |
053-0362-00 | Heater Insulation | 1 |
|
5 |
040-0010-100 | Wood Screw #10-13 x 1/2" | 1 |
|
6 |
015-0220-00 | Cable Tie Mounting Base | 3 |
|
7 |
015-0013-02 | Cable Tie | 3 |
|
8 |
053-0068-10 | Snap Bushing | 2 |
|
9 |
061-0697-00 | On / Off Label | 1 |
|
10 |
015-0650-00 | Switch | 1 |
|
11 |
050-3836-00-216 | Cover | 1 |
|
12 |
040-0008-45 | Screw #8-32 x 5/16" | 2 |
|
13 |
053-0068-00 | Snap Bushing | 1 |
|
14 |
045-0001-31 | Lockwasher | 4 |
|
15 |
Refer to: | Jumper Wire | - |
|
16 |
040-0010-109 | Screw #10-24 x 3/8" | 6 |
|
17 |
053-0092-00 | Fishpaper Insulator | 1 |
|
18 |
015-0083-01 | Duplex Receptacle | 1 |
|
19 |
040-0006-13 | Screw #6-32 x 3/8" | 2 |
|
20 |
053-0836-01 | Receptacle Cover | 1 |
|
21 |
040-0006-23 | Screw #6-32 x 1/2" | 1 |
|
22 |
015-0066-05 | Power Cord Assembly | 1 |
|
23 |
015-0002-01 | Strain Relief Bushing | 1 |
|
24 |
061-0295-00 | Cord Tag | 1 |
|
25 |
Serial Number Label | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
