630 Chair Base Shrouds

Model

 630 -010, -011, -020, -021
Serial Number V2200 thru Present

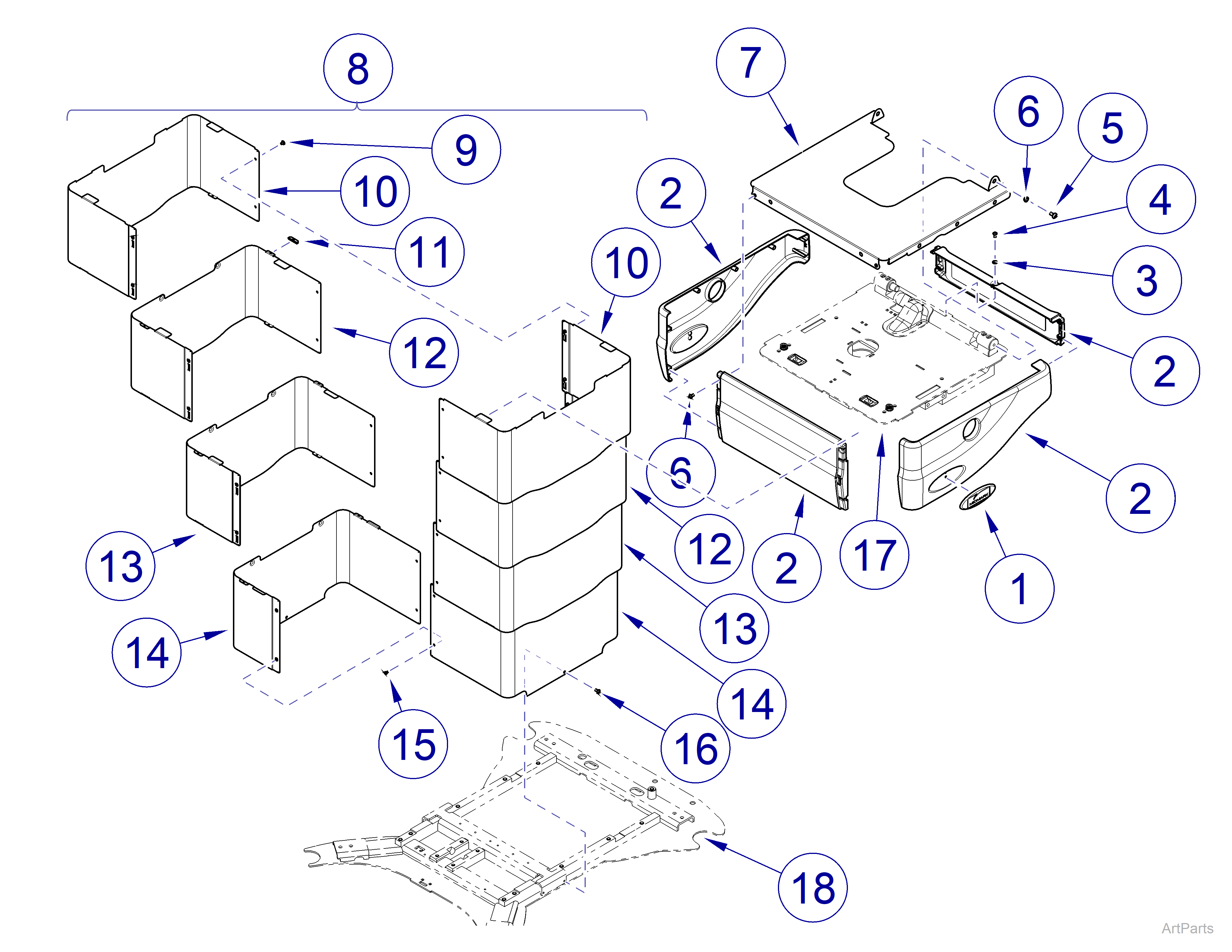

630 Human Form® Procedures Chair630 Barrier-Free® Universal Procedures Table Base Shrouds

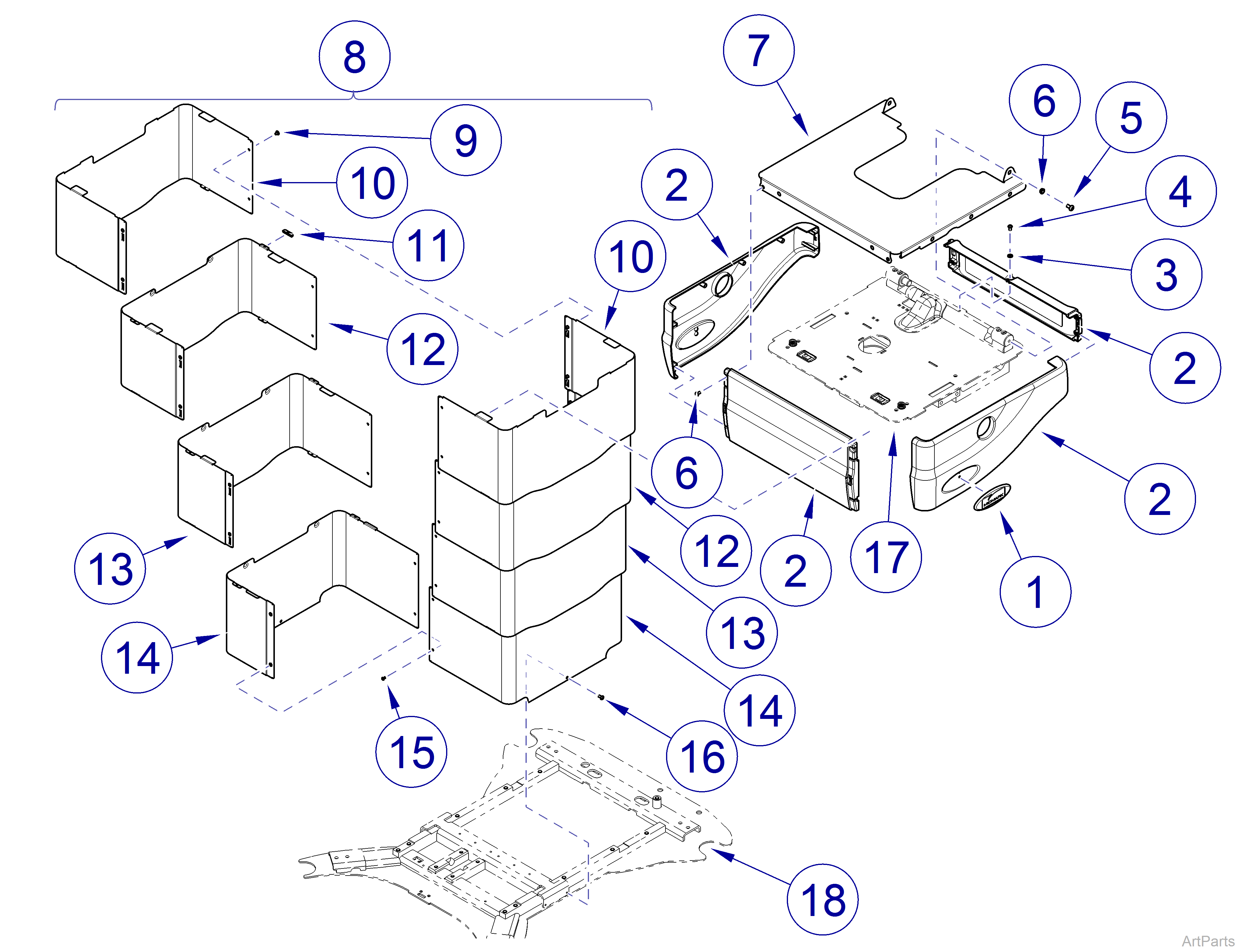

630 Chair Base Shrouds
Item Part Number Description Qty

1

061-0860-01

Midmark Logo Nameplate

2

2

 002-10820-00

Cladding

1

3

045-0001-00

Washer #10

1

4

 040-0010-129

Screw 10-24 x 1/2”

3

5

040-0250-162

Screw 1/4”-20 x 1/2”

2

6

016-0131-10

Flanged Bearing

2

7

029-6308-00

Bail

1

8

002-1800-00

Shroud Assembly Kit - includes items 9 thru 15

1

9

040-0008-106

Screw #8 x 1/4”

12

10

002-1940-00

Outer Shroud Assembly - includes item 11

2

11

053-0752-00

Snap On Glide

AR

12

002-1939-00

Mid Outer Shroud Assembly - includes item 11

2

13

002-1938-00

Mid Inner Shroud Assembly - includes item 11

2

14

002-1937-00

Inner Shroud Assembly - includes item 11

2

15

040-0008-78

Screw 8-32 x 1/4”

4

16

040-0010-47

Screw 10-24 x 3/8”

2

17

Refer to:

Column Top Components

-

18

Refer to:

Base Plate Components

-

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
