255 Light Ceiling Down Tube Main Pivot Stop Replacement Test and Repair

255 Light Down Tube Pivot Replacement

Replace Main Pivot Stop

1.Remove cross tube / lighthead. Refer to: Cross Tube Removal / Installation.

2.Remove down tube. Refer to: Down Tube Removal / Installation.

Equipment Alert

Place groove pin next to the wire harness, so wiring does not get pinched when pin is installed.

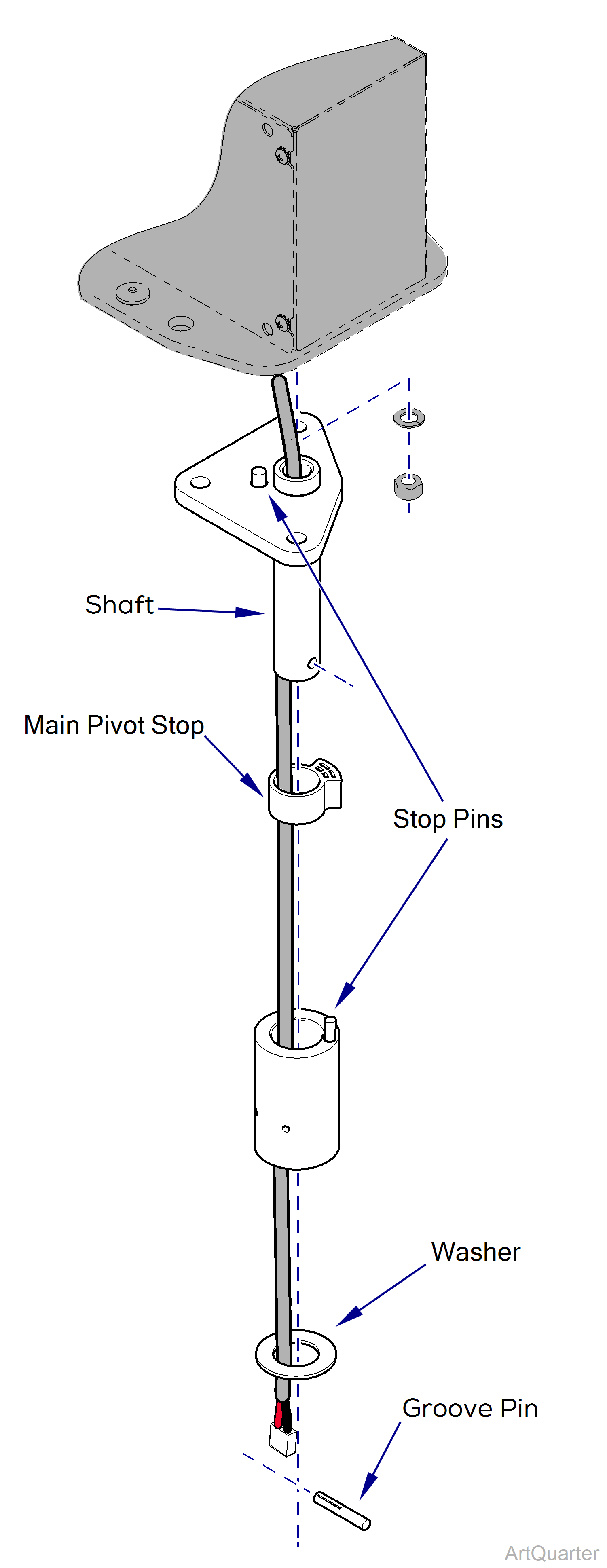

3.Remove groove pin.

4. Remove washer, pivot housing, and pivot stop.

5.Inspect two stop pins. Replace pin(s) if damaged.

6.Install main pivot stop, pivot housing, and washer onto shaft.

7.Install groove pin.

8.Install down tube. Refer to: Down Tube Removal / Installation.

9.Install cross tube / lighthead. Refer to: Cross Tube Removal / Installation.
