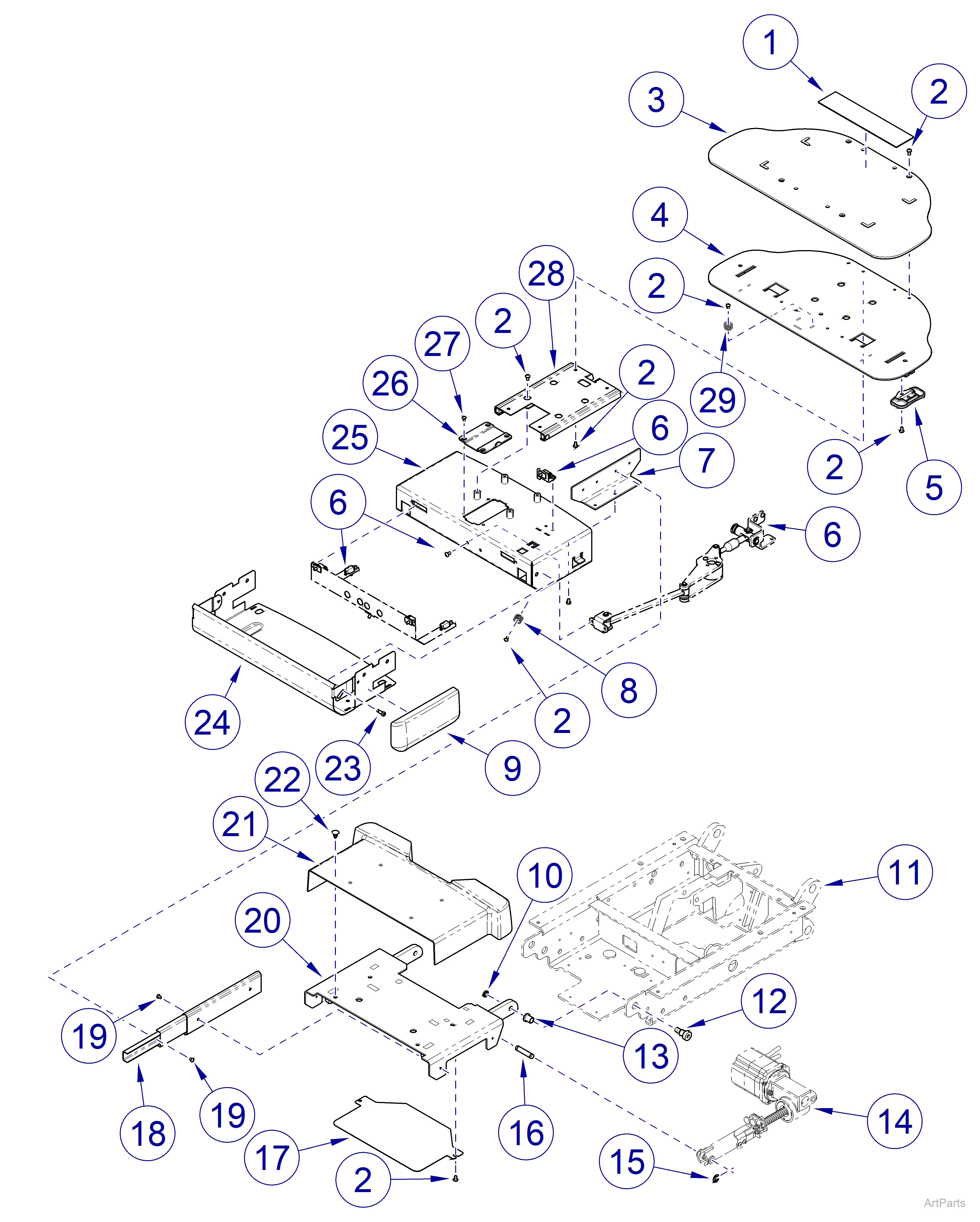

631 Chair Foot Section Main Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Foot Section Main Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | 029-5754-00 | Foot Substrate - Includes item 2 | 1 |
|
2 |
053-0131-02 | Hook Fastener Tape | 2 |
|
3 |
040-0010-47 | Screw 10-24 x 3/8 inch | 25 |
|
4 |
030-2111-00-815 | Foot Release Weldment | 1 |
|
5 |
053-2443-00-813 | Foot Extension Handle | 2 |
|
6 |
Refer to: | Foot Section - Linkage and Switches | - |
|
7 |
050-13396-00-813 | Slide Bracket | 2 |
|
8 |
025-0114-00 | Foot Bail Spring | 2 |
|
9 |
Foot Side Cover Options | ||
| 053-10804-00-813 | Left Hand - Shown | 1 | |
| 053-10805-00-813 | Right Hand | 1 | |
|
10 |
041-0375-05 | Nut 3/8-16 | 2 |
|
11 |
Refer to: | Seat Section | - |
|
12 |
042-0014-17 | Shoulder Screw | 2 |
|
13 |
016-0131-24 | Flanged Bearing | 2 |
|
14 |
Refer to: | Foot Actuator | - |
|
15 |
042-0007-00 | E-Ring 3/8 inch | 2 |
|
16 |
042-0639-00 | Clevis Pin | 1 |
| 17 | 016-1569-05 | Sleeve Bearing | 1 |
|
18 |
050-13293-00-815 | Inner Foot Cover | 1 |
|
19 |
016-1544-00 | Foot Slide | 2 |
|
20 |
040-0008-97 | Screw 8-32 x 1/4 inch | 8 |
|
21 |
030-10519-00-815 | Foot Weldment | 1 |
|
22 |
053-10842-00-813 | Mid-Section Cover | 1 |
|
23 |
042-0187-00 | Barbed Push Fastener | 4 |
|
24 |
042-0014-47 | Shoulder Screw | 2 |
|
25 |
050-13378-00-813 | Foot Sensor Cover | 1 |
| 26 | 042-0010-07 | Pop Rivet | 2 |
|
27 |
030-10520-00-815 | Foot Extension Weldment | 1 |
|
28 |
053-2455-00 | Latch Bumper | 1 |
|
29 |
042-0010-24 | Pop Rivet | 4 |
|
30 |
016-1574-00 | Foot Drop Down Slide | 1 |
|
31 |
025-0116-00 | Foot Drop Down Spring | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
